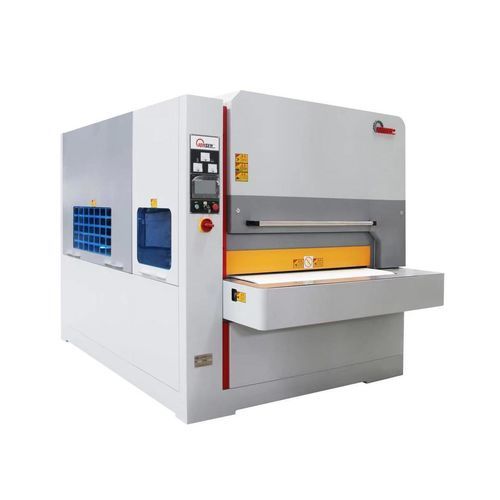

Abrasive belt deburring machine SGP1300

sandingmetal partsCNC

Product description
Designed for batch deburring, edge rounding and surface finishing of parts from turret punch presses and laser cutting lines. Core grinding stations combine a powerful wide abrasive belt with flexible filament brush roller groups to deliver continuous, uniform sanding. The vacuum-type conveyor supports batch processing of parts with multiple widths at the same thickness, reducing manual sanding, airborne dust and inconsistent results while preparing parts for folding, coating and welding.

Functions
Batch removal of burrs, rounding of sharp edges and surface polishing for punched or laser-cut parts; continuous uniform sanding achieved by wide abrasive belt plus flexible filament brush roller groups.

Features

• Welded steel frame with sandblasted and powder-coated finish for structural rigidity.
• Powerful wide abrasive belt pre-processing station for large burrs or brushing; servo lift for precise sanding.
• Eight flexible filament brush roller groups arranged with alternating rotation directions to ensure contact at all part edges.
• Vacuum conveyor platform suitable for parts as small as 60x60 mm with few through-holes.
• High-speed rotating components use imported bearings.
• Targeted edge and hole-edge processing with minimal effect on large surface areas; protective-film parts can be processed with film in place.
• Suitable for lightly formed surfaces and machined parts.
• Long-life consumables with uniform wear.
• User-friendly operation with built-in LED lighting for internal process observation.
• Touchscreen control interface.

Optional models

• SP1300: For copper, aluminium or well-cut metal flat parts, option to install filament-brush rollers without abrasive belt.
• SGP1000: For heavy burr pre-processing (e.g., laser or plasma cut parts with large dross) or high-hardness alloys, add multiple powerful wide abrasive belt pre-processing stations combined with six brush-roller groups.
• Option to place a wide abrasive belt polishing station after the flexible filament rollers for brushed chamfered surfaces.
• Available with 1600 mm processing width as an option.

Suitable for

• Carbon steel, stainless steel, aluminium, copper and similar metals.
• Parts with protective film can be processed while largely preserving the film.
• Thickness range 0.5 mm–500 mm, maximum width up to 1300 mm for deburring.
• Large chamfer preparation before coating.

Specifications
Working width: 1300 mm
Abrasive media: flexible filament brush rollers, wide abrasive belt
Machine opening: 0–50 mm
Number of flexible filament rollers: 8
Feed speed: 0.8–5 m/min
Weight: 5000 kg

Technical data / Features

• Model: SGP1300
• Applicable materials: carbon steel, stainless steel, aluminium, copper
• Processing thickness range: 0.5 mm – 500 mm
• Maximum processing width: 1300 mm
• Machine opening: 0–50 mm
• Number of flexible filament rollers: 8
• Feed speed: 0.8–5 m/min
• Total weight: 5000 kg
• Abrasive media: flexible filament brush rollers, wide abrasive belt
• Conveying method: vacuum suction
• Control: touchscreen
• Built-in lighting: LED
• Key rotating bearings: imported bearings
• Consumable life: long with uniform wear
