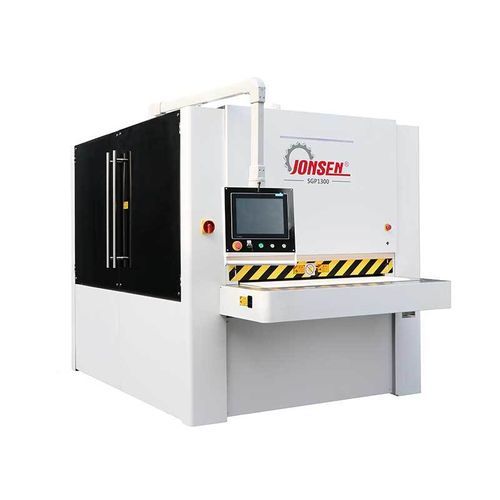

Abrasive belt deburring machine SGP1300

edge roundingfinishingfor sheet metal

Product description
SGP1300 is a versatile industrial machine for metal deburring, edge rounding and surface finishing. A wide abrasive belt head removes larger burrs or performs broad surface finishing (for example No.4 finish). The planetary abrasive barrel station (8 abrasive barrels: 4 clockwise + 4 counter‑clockwise) targets edges and contours to further round profiles with minimal effect on the main surface. The machine is designed for parts from laser cutting, punching, shearing and similar processes, delivering consistent results and higher throughput compared with manual methods. Integrated dust extraction prevents metal dust dispersion.

Highlights

• Welded frame with sandblasting and powder coating for structural rigidity.
• Dry operation suitable for metal processing lines.
• Wide abrasive belt head for heavy burr removal or surface finishing.
• Planetary abrasive barrel station for targeted edge rounding; 8 abrasive barrels with planetary rotation.
• Vacuum conveyor table to secure small parts (minimum 50 x 50 mm).
• Planetary station focuses on edges/contours while preserving the overall surface.
• Capable of processing small formed or profiled parts.
• Long consumable life for abrasive media.
• User‑friendly and straightforward operation.
• Internal LED work lighting for inspection during processing.
• Dust collection hood integrated inside the machine.

Optional configuration

• SP800/1000/1300 variant without wide abrasive belt head for parts with good cutting quality and only minor burrs.
• Additional wide abrasive belt head(s) on the front for heavier burrs or high‑hardness alloys (e.g. two wide abrasive belt heads).
• Additional wide abrasive belt head(s) on the back for straight‑line surface finishing (e.g. one wide head after the planetary station).
• Working width options of 1300 mm or 1500 mm available.

Ideal parts

• Carbon steel, stainless steel, aluminum, copper and similar metals.
• Parts with protective vinyl film (machine preserves the film and the underlying surface).
• Thickness range: 0.5 mm to 100 mm.
• Carbon steel parts requiring large edge radii.

Technical datasheet
Maximum working width: 1000 mm
Abrasive media: Abrasive barrel, wide abrasive belt
Machine opening (thickness range): 0–100 mm
Feed speed: 0.5–5 m/min
Conveyor feeding rate: 0.5–3 m/min
Total power: 38 kW
No. of abrasive barrel: 6
Machine weight: 2500 kgs

Caractéristiques / spécifications techniques

• Model: SGP1300
• Maximum working width: 1000 mm
• Machine opening (thickness range): 0–100 mm
• Feed speed: 0.5–5 m/min
• Conveyor feeding rate: 0.5–3 m/min
• Total power: 38 kW
• Abrasive media: Abrasive barrel; wide abrasive belt
• No. of abrasive barrel (table): 6
• Planetary station description (text): 8 abrasive barrels (4 clockwise + 4 counter‑clockwise)
• Machine weight: 2500 kgs
• Minimum part size accommodated by vacuum table: 50 x 50 mm
