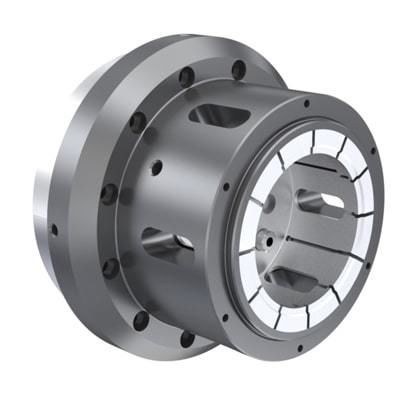

Grinding collet chuck

for turning applicationsfor internal turninggrooving

Product overview Rim-Lok’s Collet Chuck line of standard collet chucks provides a fast, flexible, and cost-effective answer to workholding needs. Designed for second and final turning operations, the Rim-Lok operates as a pull-back style chuck compatible with most standard CNC lathes and can be actuated using the machine’s primary cylinder. Manufactured by Forkardt with a proprietary material selection and heat-treating process, these collet chucks offer extended life, reduced changeover and downtime, and consistent part holding. Forkardt collets deliver repeatability of 0.0005" TIR (0.013 mm) or better, ensuring stable clamping throughout machining operations.

Advantages

• Faster acceleration to operating speed, reducing cycle times and improving productivity
• Reduced influence of centrifugal force for more consistent clamping across speeds
• Expanded grip coverage lowers risk of deformation for tubes and thin-walled parts
• Lower vibration
• Quicker setup time
• Improved machining accuracy
• Sealed design for contamination resistance
• High-speed capability with high grip force
• Pull-back actuation for precise lateral location
• Fixed end-wise location for axial positioning
• Modular design enables interchangeability

Technical Features

• Available in ID Grip and OD Grip variants
• Sealed construction
• High RPM capability
• High grip force
• Repeatability within 0.013 mm (0.0005")
• Suitable for auto-load systems
• Pull-back actuation for lateral location
• Fixed end-wise location
• Drawbar or tube actuation compatible
• Easily modified for special applications
• Modular design allows interchangeability
• Multiple machine mounts available

Applications

• Applications with increased side cutting forces
• Heavy turning or grooving on the OD
• Roughing operations
• Grinding processes
• Stationary machining centers
• Automotive differential cases
• Automotive component joining (CG join)
• Aircraft rotor components
• Vertical turning operations

Technical specifications

• Commercial product name: Rim-Lok ID Grip Collet System
• Grip types: ID Grip and OD Grip variants
• Actuation: Pull-back actuation for lateral location; drawbar/tube actuated; compatible with machine primary cylinder
• Location: Fixed end-wise (axial) location
• Design: Sealed, modular design enabling interchangeability and multiple machine mounts
• Performance: High RPM capability and high grip force; reduced centrifugal effect on clamping
• Repeatability: within 0.013 mm (0.0005") or better
• Suitable for: auto-load systems; easily modified for special applications
• Construction: Proprietary material selection and heat-treat process for extended life and reduced downtime
• Form factor: Lightweight, compact design to fit most standard CNC lathes
