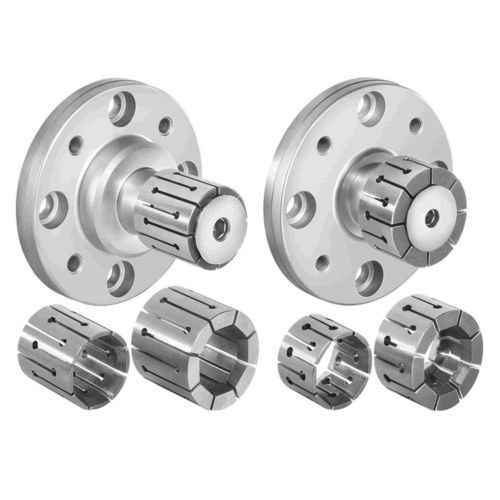

Pneumatic collet Tork-Lok ID

Overview
The Tork-Lok ID Grip Collet System is a versatile workholding solution designed to replace standard collets or 3-jaw chucks to improve productivity, setup and changeover speed, and accuracy while providing a wide internal gripping range for stock variation.

Design & General Information
The Tork-Lok arbor design delivers a flexible workholding platform. Precision-ground flats on collets and arbors enhance long-term accuracy and torque transmission. Components are standardized for interchangeability and multiple configuration options. The arbor locates straight or tapered holes on true center. The system is available in English (inch) and Metric arbor designs. The Metric arbor features a three-hole mounting pattern, tighter tolerances for size and parallelism, a precision-ground face for improved locating, and flange provisions for air sensing. Both arbor types accept the same collets. Optional fixtures include a manual locking fixture for low-cost setup and minimal maintenance, or a pneumatic cylinder mountable flat and actuated via an air valve.

Advantages

• Flexible gripping range to accommodate stock variation
• Available in Metric and English (inch) arbor designs
• Standardized components allow interchangeability and multiple combinations
• Optional self-contained pneumatic cylinder or manual locking fixture
• Precision-ground flats improve locating accuracy and torque transfer
• Arbor locates straight or tapered holes on true center
• Metric arbor offers improved mounting pattern and tighter size/parallelism tolerances

Technical Features

• Precision-ground flats on collets and arbors for improved long-term accuracy and torque transmission
• Standardized, interchangeable components for flexible combinations of collets, arbors and fixtures
• Arbor locates straight or tapered holes on true center
• Metric arbor: three-hole pattern, tighter tolerances for size and parallelism, precision-ground face, flange provisions for air sensing
• Optional manual locking fixture or pneumatic cylinder actuation

Applications

• Automotive differential cases
• Automotive rotors
• Ball joints
• Pistons
• Front brake drums
• Gear blanks
• Pump housings
• Compression plates

Available Tork-Lok ID Grip Collet Systems

• Tork-Lok ID LS — Long series English mount arbor
• Tork-Lok ID SS — Short series English mount arbor

Technical specifications

• Product family: Tork-Lok ID Grip Collet System
• Arbor designs: English (inch) and Metric
• Metric arbor improvements: three-hole mounting pattern, tighter tolerances for size and parallelism, precision-ground face, flange provisions for air sensing
• Series: Long (LS) and Short (SS)
• Fixture options: Manual locking fixture or pneumatic cylinder actuation
• Gripping method: Internal-diameter (ID) collet grip
• Locating capability: Straight or tapered holes on true center
• Component interchangeability: Standardized components permit various combinations
• Maintenance: Manual fixture offers low maintenance; pneumatic option available for automated actuation
