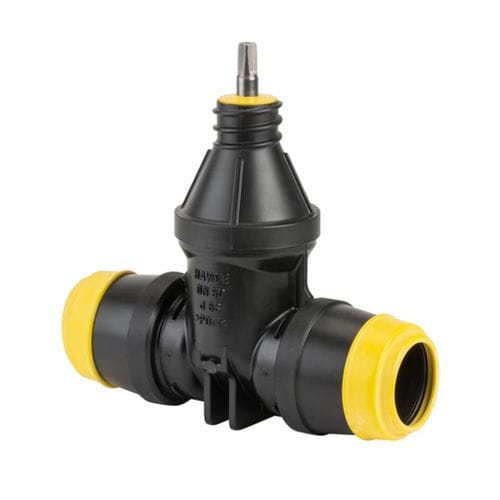

Gate valve 2635manualfor gasseat
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Media
- for gas
- Body
- seat, welded
- Applications
- for pipes
- Material
- brass, POM
- Other characteristics
- ISO, standard, DIN
- DN
25 mm, 32 mm, 50 mm
(0.984 in, 1.26 in, 1.969 in)- Temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Resilient POM seated gate valve with ISO connection at both ends for push in connection with PE pipes according to EN 1555-2, DIN 8074
Sealing system: the contact between wedge and body is friction free. Therefore no scuffing or abrasion of the wedge
Bonnet with body homogeneously connected through rotational welding, max. permissible actuation torque: 70 Nm
Support liners are required
Installation instruction: Tension-free Underground installation – observe the installation directives ÖVGW G E110 or DVGW G 472
One extension spindle for several dimensions
100% suitable for underground Installation
Standard Version: with over-winding security (break-off equipped) without handwheel and extension spindle
Catalogs
Gas catalogue
44 Pages
