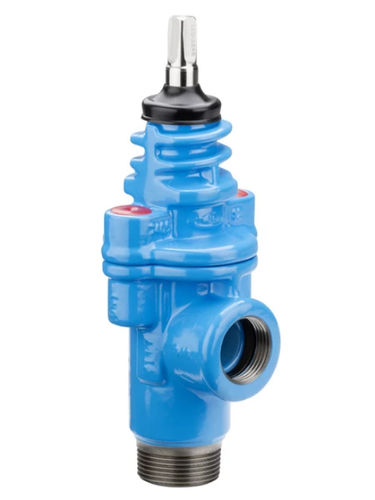

Gate valve 3120manualfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Media
- for water
- Body
- threaded, seat, straight, right-angle
- Applications
- pipe
- Material
- brass
- Other characteristics
- ISO, anti-corrosion, vertical
- DN
25 mm, 32 mm, 40 mm, 50 mm
(0.984 in, 1.26 in, 1.575 in, 1.969 in)- Pressure
16 bar
(232.1 psi)
Description
For vertical installation on pipe saddles
Service valve with internal thread are fitted with a corrosion protection ring to prevent corrosion
For service valves with external thread, the free lying threads must be protected against corrosion according to the trade regulations after assembly
2 O-rings mounted on all sides in rust-proof material
Spindle bearing made of brass
Threaded connection for extension spindle
Suitable for all underground installations
Standards
Resilient seated gate valve according to EN 1171, EN 1074-1 and EN 1074-2 with smooth, straight-through bore
Internal thread ISO 228
External thread EN 10226-1
