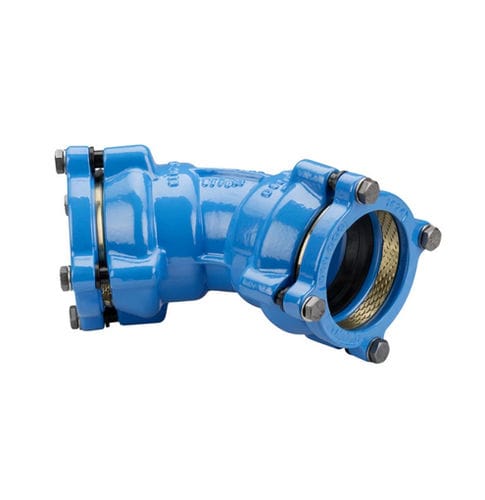

Hydraulic fitting 8545

socket45° angleDIN

The Hawle System 2000 is your optimal choice of a mechanical plastic pipe connection. Since the system was first developed in the 1980s, over 3 million units have been installed worldwide. This requires neither special training nor special tools; a simple torque wrench is all the installer needs. The unique grip ring design ensures the pressure is evenly distributed on the pipe to guarantee a permanent restraint connection. Features System 2000: Using a lip seal ring for sealing the pipe allows for easier insertion of the pipe into the System 2000 socket The pipe restraining system is required for pushing the pipe into the seal and chamfer with an appropriate tool Specially developed for repairs or expansion of existing networks using plastic pipes Easy assembly and disassembly (superior mechanical connection, no welding, minimal assembly and disassembly forces) Learn more about reliable System 2000 pipe connections in our Hawle Knowledge blog. Standards System 2000: Suitable for PE pipes 80/100, EN 12201, DIN 8074 For PVC pipes according to EN ISO 1452-2 For PE pipes with thin walls (≥ SDR 21) and low internal pressure we recommend using a support liner restraint acc. to DIN 8076 T1/T3 with protecting caps of recycled PE or PE foil packing to prevent ingress of dirt & dust during storage acc. to EN 12351 and EN 805
