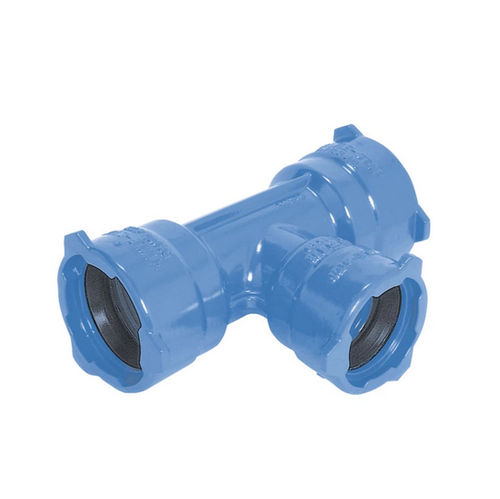

Hydraulic fitting NL20socketT-shapediron
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- socket
- Configuration
- T-shaped
- Material
- iron
- Diameter
Max.: 300 mm
(11.811 in)Min.: 80 mm
(3.15 in)- Operating pressure
16 bar
(232.06 psi)
Description
All socket tee with BAIO® double function sockets at all ends for the restraint connection with BAIO® spigot ends and for connecting DCI, steel, PE and PVC pipes.
When a lateral outlet DN 80 is used in vertical installation situations (e.g. for hydrants, air valve sets or pipe fittings) with BAIO® spigot end a dirt cover and locking ring (model no. 490) shall be used.
Gaskets for medium water:
DCI pipes: BLD® gasket
PE/PVC pipes: GKS gasket (please specify clock position for the factory installation of the GKS gasket)
Gaskets for the medium gas:
Gas-resistant DCI pipe gasket or gas-resistant GKS gasket (PVC pipe, 5 bar) required
Catalogs
Water Catalogue
333 Pages
