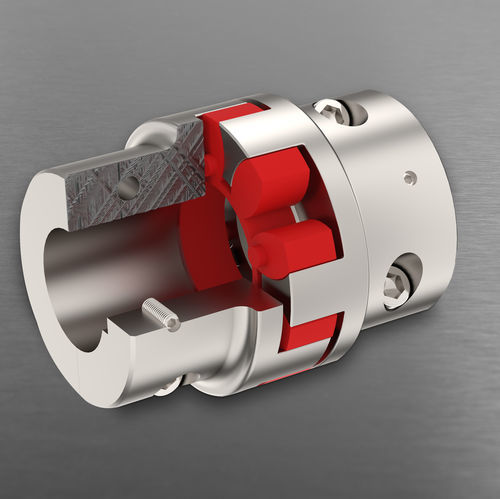

Flexible coupling Softex® SPLIT with clamping ringwith boremotor
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- with bore, with clamping ring
- Product applications
- industrial, for mechanical power transmission, for pump, motor, for machines, for conveyor
- Performance
- maintenance-free, highly-elastic
- Other characteristics
- with high torsional flexibility
- Torque
Min.: 8 Nm
(5.900497 ft.lb)Max.: 2,350 Nm
(1,733.271051 ft.lb)
Description
Softex® torsionally flexible couplings are maintenance-free and offer excellent dynamic performance. Different elastomer hardnesses for the spiders allow for higher torques with the same coupling size.
The drive couplings are available as Softex® FA flange couplings, as Softex® TL with a clamping bush, Softex® Split with a predetermined breaking point, and as Softex® ES in a backlash-free design.
Technical specifications
The drive couplings are available as Softex® FA flange couplings, as Softex® TL with a clamping bush, Softex® Split with a predetermined breaking point, and as Softex® ES in a backlash-free design.
Technical specifications
- Split coupling hub with predetermined breaking point
- Easy assembly/disassembly using clamping screws
- Centering of the hub half via the fracture surface
- Suitable for particularly tight installation spaces
- Assembly possible without moving the unit
- Material: grey cast iron
- Finish bores with ISO fit H7
- Available with (7.1) and without (7.0) keyway
- ATEX approval
