AC servomotor HDD 09Q
380 V400 VIP65

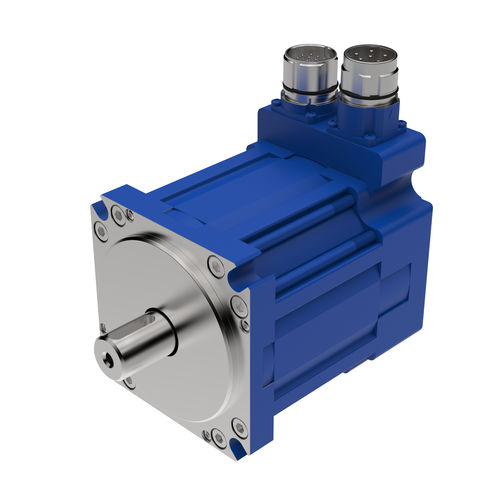

AC servomotor - HDD 09Q - HDD Sweden AB - 380 V / 400 V / IP65
AC servomotor - HDD 09Q - HDD Sweden AB - 380 V / 400 V / IP65
AC servomotor - HDD 09Q - HDD Sweden AB - 380 V / 400 V / IP65 - image - 2
AC servomotor - HDD 09Q - HDD Sweden AB - 380 V / 400 V / IP65 - image - 3
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical equipment, for rotary tables
Other characteristics
high-torque, low-inertia
Power

1,006 W
(1.37 hp)

Max.: 4,500 W
(6.12 hp)

Min.: 0 W
(0 hp)

Torque

4.8 Nm, 11.3 Nm
(3.540298 ft.lb, 8.334452 ft.lb)

Min.: 18 Nm
(13.276119 ft.lb)

Rotational speed

2,000 rpm
(12,566.3706 rad.min-1)

Description

Our second biggest motor in the 09-serie, HDD 09Q, with rated speed 2000 rpm, nominal torque 4.8 Nm and the length of 109.7 mm. For shorter accelerations you get a peak torque of 18Nm. Weight is 4,7 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 09Q. Length* [mm]: 109.7 Flange size [mm]: 92 Mass** [kg]: 4.7 Inertia [kgcm^2]: 8.8 Shaft dia [mm]: 19 j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
