AC servomotor HDD 09 J series
400 V380 V220 V

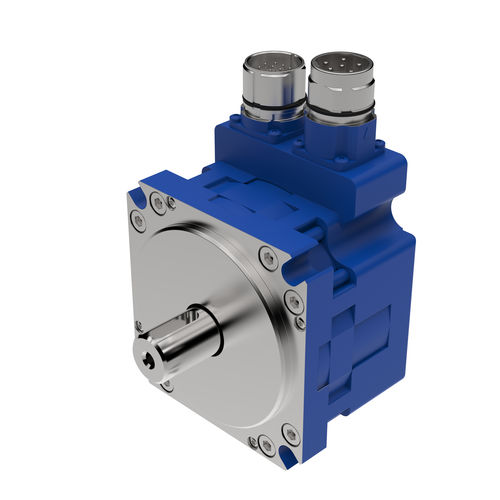

AC servomotor - HDD 09 J series - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - HDD 09 J series - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - HDD 09 J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 2
AC servomotor - HDD 09 J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 3
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V, 48 V
Configuration
compact
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, for industrial applications, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical equipment, for rotary tables
Other characteristics
high-torque, low-inertia
Power

Min.: 0 W
(0 hp)

Max.: 2,265 W
(3.08 hp)

723 W
(0.98 hp)

Torque

Max.: 7.35 Nm
(5.421082 ft.lb)

2.3 Nm, 4.6 Nm
(1.696393 ft.lb, 3.392786 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

Our most sold motor, HDD 09J, with a rated speed 3000 rpm, nominal torque 2,3 Nm and a compact length of 59,6 mm. For shorter accelerations you get a peak torque of 7.35Nm. Weight is only 2,4 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 09J. Length* [mm]: 59.6 Flange size [mm]: 92 Mass** [kg]: 2.4 Inertia [kgcm^2]: 2.8 Shaft dia [mm]: 19 j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
