AC servomotor HDD 14 J series
380 V400 V220 V

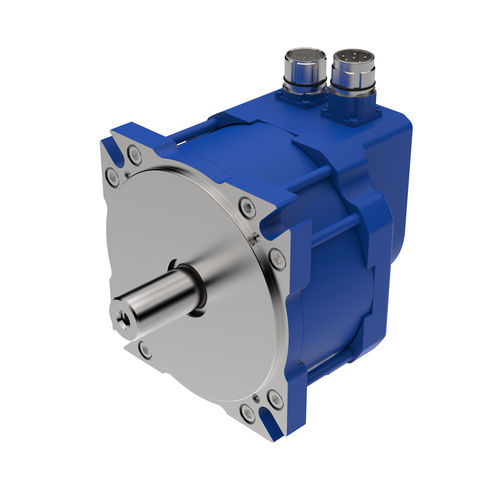

AC servomotor - HDD 14 J series - HDD Sweden AB - 380 V / 400 V / 220 V
AC servomotor - HDD 14 J series - HDD Sweden AB - 380 V / 400 V / 220 V
AC servomotor - HDD 14 J series - HDD Sweden AB - 380 V / 400 V / 220 V - image - 2
AC servomotor - HDD 14 J series - HDD Sweden AB - 380 V / 400 V / 220 V - image - 3
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical equipment, for rotary tables
Other characteristics
high-torque, low-inertia
Power

Max.: 7,500 W
(10.2 hp)

Min.: 0 W
(0 hp)

2,200 W
(2.99 hp)

Torque

Max.: 22.5 Nm
(16.595148 ft.lb)

7 Nm, 14 Nm
(5.162935 ft.lb, 10.32587 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

Our bigger version in the popular HDD series, HDD 14J, with rated speed 3000 rpm, nominal torque 7.0 Nm and the length of 80.9 mm. For shorter accelerations you get a peak torque of 22.5Nm. Weight is 6.0 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 14J. Length* [mm]: 80.9 Flange size [mm]: 140 Mass** [kg]: 6.0 Inertia [kgcm^2]: 13.3 Shaft dia [mm]: 24j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
