AC servomotor HDD 09 S series
380 V400 VIP65

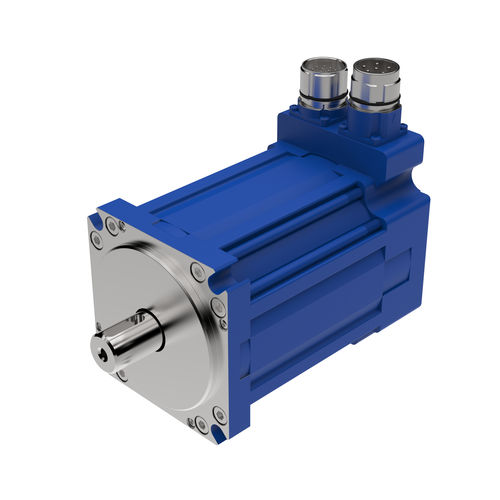

AC servomotor - HDD 09 S series - HDD Sweden AB - 380 V / 400 V / IP65
AC servomotor - HDD 09 S series - HDD Sweden AB - 380 V / 400 V / IP65
AC servomotor - HDD 09 S series - HDD Sweden AB - 380 V / 400 V / IP65 - image - 2
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical equipment, for rotary tables
Other characteristics
high-torque, low-inertia
Power

1,445 W
(1.96 hp)

Min.: 0 W
(0 hp)

Max.: 3,200 W
(4.35 hp)

Torque

6.9 Nm, 8.8 Nm
(5.089179 ft.lb, 6.490547 ft.lb)

Max.: 33 Nm
(24.339551 ft.lb)

Rotational speed

2,000 rpm
(12,566.3706 rad.min-1)

Description

Our biggest motor in the 09-serie, HDD 09S, with rated speed 2000 rpm, nominal torque 6.9 Nm and the length of 137.3 mm. For shorter accelerations you get a peak torque of 33Nm. Weight is 5,7 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 09S. Length* [mm]: 137.3 Flange size [mm]: 92 Mass** [kg]: 5.7 Inertia [kgcm^2]: 12.0 Shaft dia [mm]: 19 j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
