AC servomotor HDD 09E
400 V380 V220 V

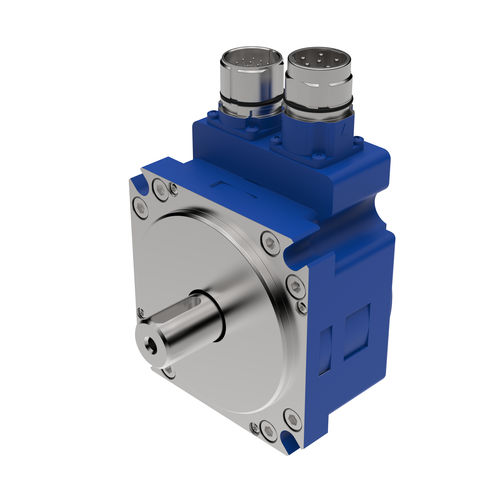

AC servomotor - HDD 09E - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - HDD 09E - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - HDD 09E - HDD Sweden AB - 400 V / 380 V / 220 V - image - 2
AC servomotor - HDD 09E - HDD Sweden AB - 400 V / 380 V / 220 V - image - 3
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V, 48 V
Configuration
ultra-compact, small
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical applications, for rotary tables
Other characteristics
high-torque, low-inertia
Power

Min.: 0 W
(0 hp)

Max.: 1,000 W
(1.36 hp)

377 W
(0.51 hp)

Torque

Max.: 3.1 Nm
(2.286443 ft.lb)

1.2 Nm, 1.3 Nm
(0.885075 ft.lb, 0.958831 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

Our smallest motor, HDD 09E, with a rated speed 3000 rpm, nominal torque 1,2 Nm and the ultra-compact length of 47,3 mm. For shorter accelerations you get a peak torque of 3.1 Nm. Weight is only 1,8 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information, see datasheet for HDD 09E. Length* [mm]: 47.3 Flange size [mm]: 92 Mass** [kg]: 1.8 Inertia [kgcm^2]: 1.3 Shaft dia [mm]: 19 j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.

Catalogs

HDD 09E
HDD 09E
2 Pages
Motor Manual
Motor Manual
57 Pages
