AC servomotor HDD 14 N series
380 V400 V220 V

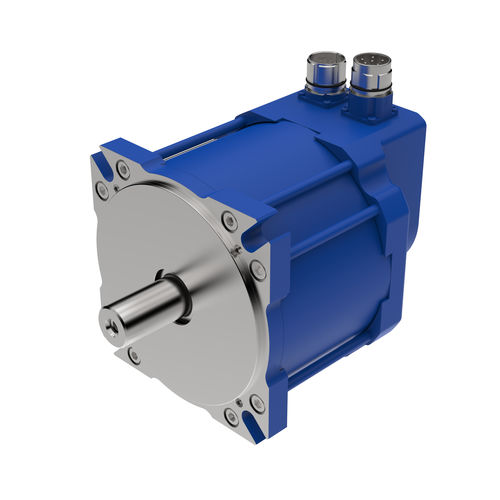

AC servomotor - HDD 14 N series - HDD Sweden AB - 380 V / 400 V / 220 V
AC servomotor - HDD 14 N series - HDD Sweden AB - 380 V / 400 V / 220 V
AC servomotor - HDD 14 N series - HDD Sweden AB - 380 V / 400 V / 220 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical equipment, for medical applications
Other characteristics
high-torque, low-inertia
Power

3,142 W
(4.27 hp)

Max.: 15,000 W
(20.39 hp)

Min.: 0 W
(0 hp)

Torque

10 Nm
(7.375621 ft.lb)

Max.: 45 Nm
(33.190297 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

One of our biggest and most powerful solid shaft motor, HDD 14N, with rated speed 3000 rpm, rated torque 10.0 Nm and the length of 114.1 mm. For shorter accelerations you get a peak torque of 45Nm. Weight is 10 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 14N. Length* [mm]: 114.1 Flange size [mm]: 140 Mass** [kg]: 10.0 Inertia [kgcm^2]: 32.6 Shaft dia [mm]: 24j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
