AC servomotor HDD 14 Q
400 V380 VIP65

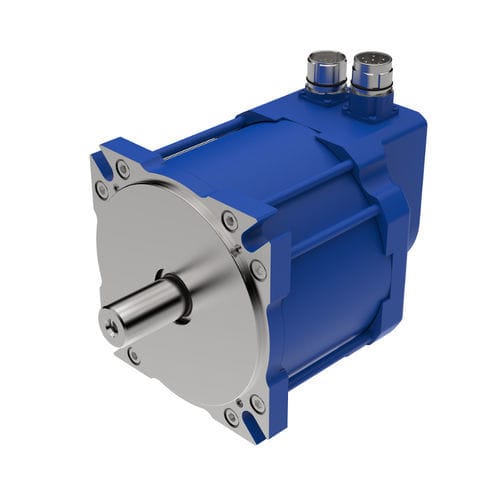

AC servomotor - HDD 14 Q - HDD Sweden AB - 400 V / 380 V / IP65
AC servomotor - HDD 14 Q - HDD Sweden AB - 400 V / 380 V / IP65
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for marine applications, for rotary tables
Power

3,770 W
(5.13 hp)

Torque

12 Nm
(8.850746 ft.lb)

Max.: 72 Nm
(53.104475 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

One of our biggest and most powerful solid shaft motor, HDD 14Q, with rated speed 3000 rpm, rated torque 12.0 Nm and the length of 146.5 mm. For shorter accelerations you get a peak torque of 72Nm. Weight is 12 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 14Q. Length* [mm]: 146.5 Flange size [mm]: 140 Mass** [kg]: 12.6 Inertia [kgcm^2]: 51.6 Shaft dia [mm]: 24j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
