AC servomotor HDD 14 R
400 V380 V20-pole

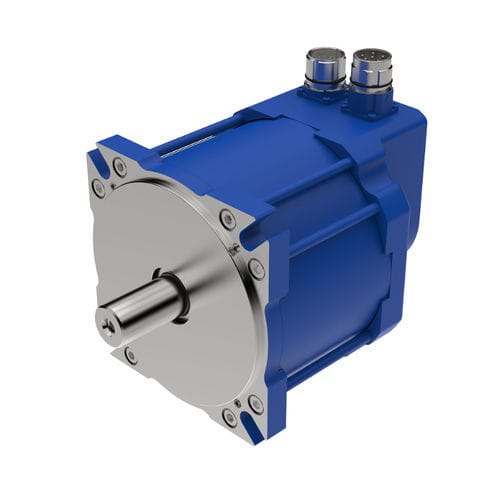

AC servomotor - HDD 14 R - HDD Sweden AB - 400 V / 380 V / 20-pole
AC servomotor - HDD 14 R - HDD Sweden AB - 400 V / 380 V / 20-pole
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for the automotive industry, for machine tools, for medical applications, for rotary tables
Power

3,200 W
(4.35 hp)

Torque

15 Nm
(11.063432 ft.lb)

Max.: 93 Nm
(68.59328 ft.lb)

Rotational speed

2,000 rpm
(12,566.3706 rad.min-1)

Description

Our biggest and most powerful solid shaft motor, HDD 14R, with rated speed 2000 rpm, rated torque 15.0 Nm and the length of 179.7 mm. For shorter accelerations you get a peak torque of 93Nm Weight is 14 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. For further information see datasheet for HDD 14 R. Rated current [A]: Length* [mm]: 179.7 Flange size [mm]: 140 Mass** [kg]: 16 Inertia [kgcm^2]: 71.0 Shaft dia [mm]: 24j6 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
