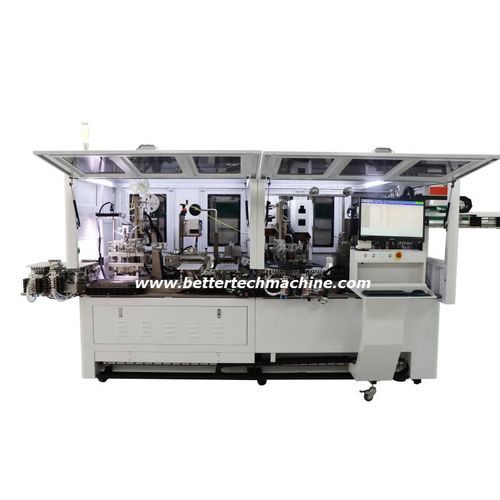

Wire harness making machine JWD-CDQ01

fully-automaticAC charging gun

Machine - Electric Vehicle AC Charging Gun Wire Harness Processing Machine Model JWD-CDQ01 Brand BETTERTECH The positioning cutting, laser marking, number tube insertion, number tube heat shrinking, and segment crimping of the automobile charging gun wiring harness processing machine have greatly improved the performance of the whole machine. Low noise, low power consumption, and high efficiency. It is suitable for welding copper wire/tinned wire/aluminum wire with copper/aluminum terminals, and is widely used in many fields such as automobiles, instruments and meters, communication equipment, and household appliances. Feature This fully automatic platform for automotive charging gun harnesses uses advanced servo motors, motion control cards and industrial computer control systems, which can complete stripping, number tube insertion and terminal punching in one go. It is suitable for crimping various terminals (customizable according to different terminals), and the efficiency is significantly improved for the processing of AC charging gun cables for new energy vehicles. The stripped wire waste is vacuum-absorbed to ensure a clean and tidy working environment. Cable wire specifications: Cable outer diameter 12-20mm, cable wire 4-6mm2, single core wire sequence 3+1, 3+2 Cable material has been circled, diameter 240-280mm, sharging gun head cable length reserved 600mm, gun tail cable length reserved 600mm or more as recommended value Cable material stripped length: gun head: 120mm-150mm, gun tail: 120-200mm Charging gun tail L/N/PE length without terminal (finished state): ≥70mm Charging gun head L/N/PE length without terminal (finished state): ≥110mm
