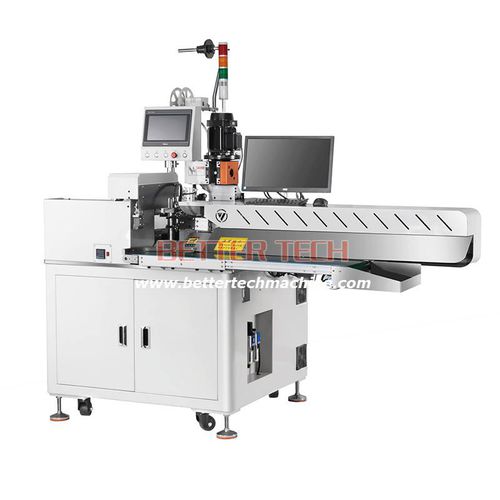

Automatic assembly machine JWD-JKD02

wire harnesshousing

Fully Automatic Wire and Single Terminal Housing Assembly Machine Model: JWD-JKD02 Brand: Bettertech Fully automated wire cutting crimping and connector housing insertion machine can finish processing procedure of wire cutting and stripping at both sides of the wire, crimping wire terminal and inserting terminal housing at one end. Machine - Fully Automatic Wire and Single Terminal Housing Assembly Machine Model - JWD-JKD02 Function - cable cutting stripping, one end terminal crimping and terminal housing inserting. Identify good products and defective products Automatic collecting Capacity - 5000 – 10000 pin/h(depending on the terminal housing) Terminal housing size - 1.0 – 3.96 gap(10 – 20pin) Wire size - AWG28 – AWG18 Processing length - 60 – 1000mm Cutting tolerance - ±(0.002*cutting length+1)mm Stripping length - 1 – 7mm Crimping force - 19.6KN(2Ton) Crimping stroke - 30mm Crimping mold - OTP mold Temprature - 15℃ ~ 30℃ Gas pressure - 0.5 – 0.7MPa(clean and dry gas) Power supply - 220V 50Hz Singe phase Dimension - 1100mm×9850mm×1600mm
