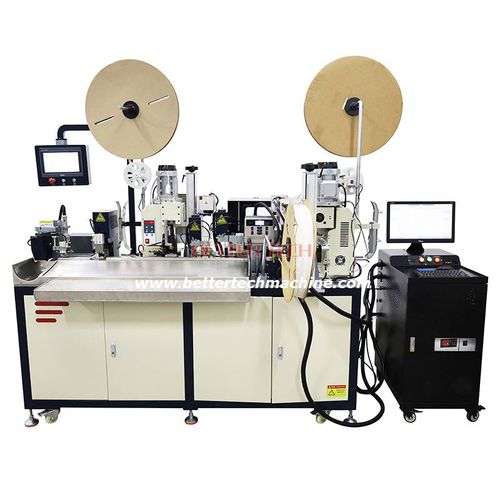

Tube production machine JWD-SGST18

for wire harnessfully-automatic

Fully Automatic Dual-Side Wire Cutting and Crimping and Heat Shrink Tube Marking and Assembly Machine Model JWD-SGST18 Brand Bettertech The floor-standing automated processing platform JWD-SGST18 perfectly completes the processes of simple wire harness and terminal crimping, wire harness marking and heatshrink tubing shrinking. Model - JWD-DGST01 - JWD-SGST18 Function - wire cutting, stripping,crimping two end crimping 1pcs heat shrink tube assembly - 2 pcs heat shrink tube assembly Wire size - AWG26-14 - AWG24-10 Capacity - 2800pcs/h - 1100-1300pcs/h Cutting length - 80-9900mm - 50-9999mm Stripping length - 0.1-13mm - 1-15mm Crimping force - 20KN/customization Crimping stroke - 30mm/customization Applicable mold - OTP mold/optional Detection device - air pressure detection, Lack of wire,terminal or heat shrink tube Power supply - 220V 50/60Hz 0.5-0.6MPa - Dimensions - 1350×800×1540mm - 2000×750×1850mm Weight - 230Kg Optional - CFM/MES/customization
