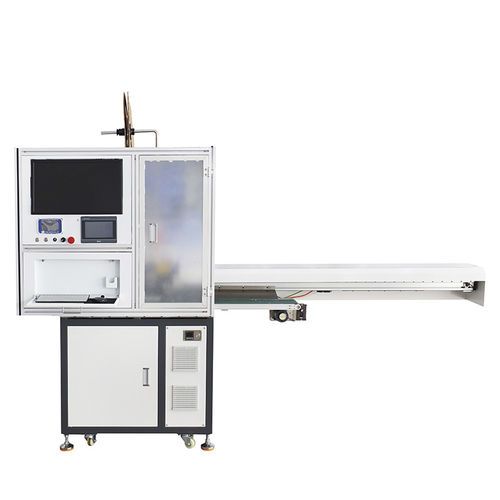

Wire stripping and crimping machine JWD-TZHT01

fully-automatic

Multicore Cable Stripping Tinning and Single End Crimping Machine Fully Automatic Machine Model JWD-TZHT01 Dual ends: cable cutting, outer jacket stripping, inner insulation stripping; single cable ends: one end crimping + one end dipping tin Parameter Machine - Multicore Sheath cable Strippng Crimping and Tinning Machine Model - JWD-TZHT01 Function - Dual canle ends: cable cutting, outer jacket stripping, inner insulation stripping - single cable ends: one end crimping + one end dipping tin Wire diameter - 2mm一7mm(need sample test) Cable Types - Multicore sheathed cable Capacity - 2000-5000pcs/h(depending on cable) Cutting length - 60mm一1000mm;or customization Outer Stripping length - crimping side: 16-70mm - the other side: 30-70mm Inner stripping length - Tinning side: 0-20mm Air pressure - 0.5-0.7Kpa Power supply - AC220V 50Hz 1.6Kw Weight - 500Kg Dimension - 900mm×1050mm×1600mm
