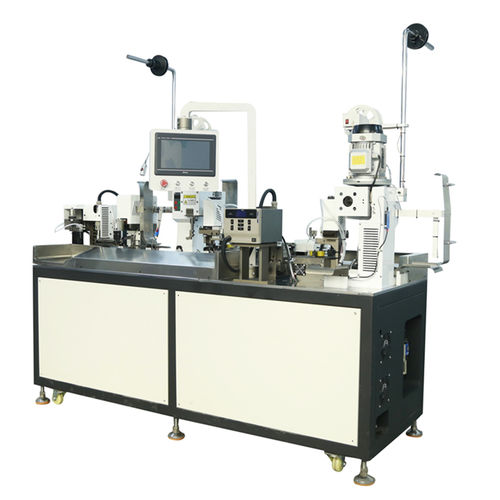

Automatic assembly machine JWD-SGST01

wire harness

Heat Shrink Tube Assembling and Fully Automatic Wire Crimping Machine Model JWD-SGST01 Brand Bettertech Bettertech offers automation solution for wire harness manufacturing company, fully automated processing machine JWD-SGST01 perfectly completes the processes of wire harness and terminal crimping, wire harness assembly and heatshrink tubing shrinking. Feature Function: Heat shrink tube cutting, insertion and shrinking, cable cutting, stripping and crimping Available cable:AWG26#-AWG14# Capacity: 1000pcs/h Stripping length: 0.1mm-12mm/customization Heat shrink tubing size: 9~25mm ⊘2.5-⊘6mm Parameter Model - JWD-SGST01 Function - Wire cutting, wire stripping, wire crimping Heat shrink tube/cable sleeve assembly Wire size - AWG14#-AWG26# Capacity - 1000pcs/hour(wire length=100mm) Processing length - 68mm-999mm (assembly two cable sleeve) 48mm-999mmm(assembly one cable sleeve) Cutting tolerance - Adjustable Stripping length - 0.1mm-12mm Crimping force - 2.0 Ton Number tube size - 9~25mm ⊘2.5-⊘6mm Pipe penetration depth - 78mm Position of pulling the pipe - 5mm-30mm Display - LCD Single Chip Micyoco Auxiliary device - Waste paper rewinding device, Material strip cutting system Detection device - Knot detection, End detection, Missing wire detection Power supply - AC220V Single phase 8A Dimension - 1950×720×1600mm(No protrusions) Weight - 750kg
