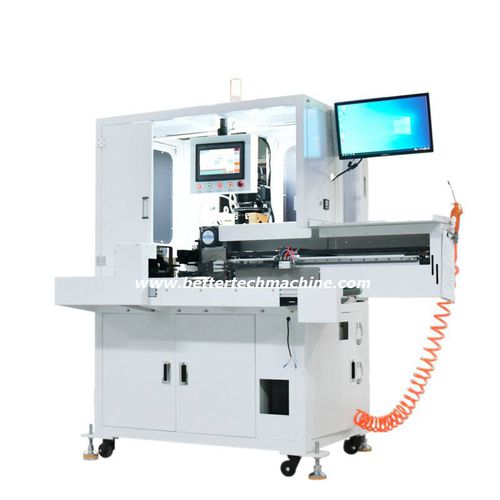

Automatic assembly machine JWD-JKTZ01

wire harnesshousing

Wire Single End Crimping Terminal Housing Insertion Machine Model: JWD-JKTZ01 Brand: Bettertech Fully automated wire harness manufacturing machine can finnish wire cutting and stripping on dual ends, terminal crimping, wire tinning, and terminal housing insertion on differenr ends. Feature Function: cable cutting and stripping, terminal crimping, terminal housing insertion Wire size: 32AWG ~ 14AWG Stripping length: customization Tinning length: 0~9mm Cutting length: 35~800mmmm This wire processing machine suppot customization service Detection: Air pressure reduction; whether there is wire, housing connector or terminal, current conduction, pressing error, crimping force monitor Optional: wire feeder, crimping force monitor. Machine - Fully Automatic Wire Stripping Tinning Crimping and Terminal Housing Insertion Machine Model - JWD-JKTZ01 - JWD-JKTZ02 - JWD-JKTZ03 Function cable cutting, stripping on both sides crimp on one end crimp on two ends One housing assembly Two housing assembly Wire size - 32AWG ~14AWG Yield - ≥99.7% Capacity - 4500pcs/h - 3800pcs/h Cutting length - 35~800mm - 42~800mm Stripping length - 6mm(on crimping side) Stripping length - 9mm(on tinning side) - 6mm Twisting length - 3~9mm - 3~9mm - 3~6mm Tinning length - 0~9mm - 0~9mm - 0~6mm Housing assembly - Multiple plug-in CCD visiual system - Detect stripping / housing insertion Detective divice - Air pressure reduction; whether there is wire, housing connector or terminal, current conduction, pressing error, crimping force monitor Optional - wire feeder, crimping force monitor,
