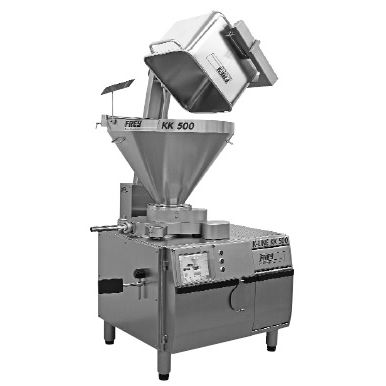

Servo-driven vacuum filler KK500

for ham

Fully electronic continual circular piston stuffer for STRAIGHTFILLING and PORTIONING with FREY Servo drive. Additional stirrer drive. Filling performance max. 7.000 kg/h (Inner and outer) machine housing and hopper are completely made of stainless steel Hopper with 250 liters Filling pressure: 25 bar incl. electronically locked footstep Total connected load: max. 10,9 kW 400 Volt, 50 Hz incl. accessories and accessories holder Industrial PC control TC733 12" TFT colour display (800 x 600) Touch operation, motion controll, self-explaining operation CAN-Bus for high speed communikation with attachments Ethernet interface USB interface with table of contents and indication of the product name in the program Portioning range from 50 - 100.000 g (50 - 999 g in 0,1 g steps) Portioning speed max. 350 portions/min. Speed and length of portioning pauses infinitely adjustable counter of passage quantity, piece counter, automatic stop control flow-reverse mechanism, adjustable 1st portion weight memory for 200 filling programs electr. pulse control for automatic clipping machines with integrated vacuum system and water separator digitally controlled in the vacuum-chamber vacuum pump 40 m³ The machine can be equiped with a lifting and dumping device for 200 litre norm trolley, ex factory.
