Coriolis flow transmitter UMC4

massfor liquidsfor liquids and slurries

Overview

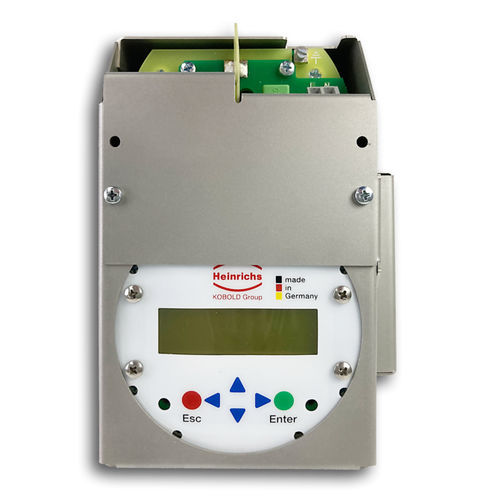

The UMC4 transmitter in a rack-mount housing is designed for Coriolis mass flow measurement systems. It delivers synchronized mass flow, density and temperature data suitable for demanding industrial processes and custody-transfer applications.

Highlights

• Compact rack-mount format for space-constrained installations
• Configured for hydrogen refuelling station requirements

Key description
The UMC4 processes signals from Coriolis sensors to provide accurate mass flow, density and temperature outputs. It supports liquids, gases and slurries and supplies reliable measurements for process control and metrology.

Exceptional accuracy for demanding applications
The transmitter delivers repeatable mass flow and density values required for process control and custody transfer, with integrated compensation for temperature and pressure variations.

Features

• Multivariable measurement: Simultaneous mass flow, density and temperature outputs reduce instrumentation complexity.
• Real-time data processing: Fast signal processing for prompt feedback to control systems.
• User-centric design: Clear operator interface for on-site configuration and status checks.
• Versatile communication: HART, Modbus and Profibus compatibility for system integration.

Built for harsh industrial environments
The rack-mount housing is engineered for installation in industrial control cabinets and protected environments, with electronic design to withstand typical temperature and contamination ranges.

Versatility across industries
Adaptable to chemical, oil & gas, energy and food & beverage sectors as well as hydrogen refuelling stations where precise mass and density measurement is essential.

Easy integration, maximum efficiency
Compact footprint and standardized communication interfaces allow direct integration with Heinrichs Coriolis flow sensors and third-party control systems to streamline commissioning.

Driving operational performance
Advanced diagnostics, adaptive algorithms and data logging support preventive maintenance and process optimisation strategies.

Applications
Designed for use with Heinrichs Coriolis mass flow meters of the TMU, TMU-W, HPC, TM and TME series. Rack-mount format is particularly suited to hydrogen refuelling station installations.

Special features

• Adaptive flow optimisation: Algorithms adjust to process dynamics to maintain measurement accuracy.
• Intelligent diagnostics: Predictive checks to detect anomalies before they affect operations.
• Energy-efficient operation: Low power consumption in continuous operation.
• Advanced data logging & analytics: Real-time capture for performance review and traceability.
• IoT readiness: Interfaces enable remote monitoring and integration with IoT platforms.
• Security features: Protocol-level protections for data integrity and access control.
• Customisable interface & alerts: Tailorable display parameters and alarm thresholds.
• Temperature & pressure compensation: Built-in compensation algorithms to preserve accuracy under variable conditions.

Technical specifications

• Installation: remote mounted / rack-mount
• Power supply: 19 … 36 V DC
• Outputs: galvanically isolated
• Analogue outputs: 2 x 4 … 20 mA
• Binary output 1: passive via optocoupler, Ue = 30 V, Ie = 50 mA, Pe = 0.5 W
• Frequency: 1 kHz
• Binary output 2: passive via optocoupler, Ue = 30 V, Ie = 50 mA, Pe = 0.5 W
• Second pulse output: 90° phase-shifted (optional)
• Ambient temperature: -20 … 60 °C (-4 … 140 °F)
• Ingress protection: IP 10 (EN 60529)
• Certificates and approvals: ATEX / IECEx (e.g. BVS 21ATEX E 063 X, IECEx BVS 21.0069X), CE marking (2014/34/EU, 2014/30/EU), OIML R139 for hydrogen vehicle fuelling
• Communication: HART (also supports Modbus and Profibus)
