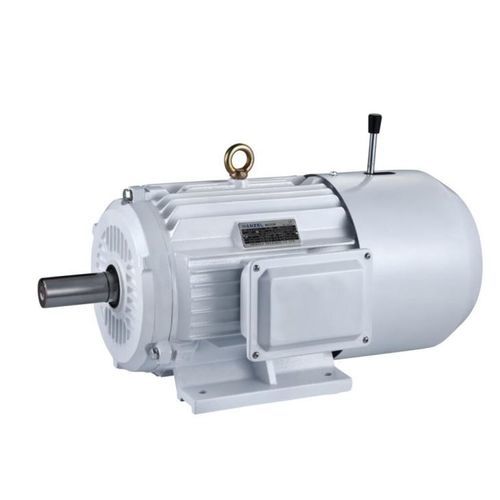

Motor with built-in electromagnetic brake YEJ2 Series

three-phaseasynchronous400 V

YEJ2 series electromagnetic brake motors are improved products of YEJ series, it is in accordance with JB/T6456 requirements, and its electrical performance is in accord with Y2 series technical standard. The electric power of the controller should be synchronized with the electric power of the motor. YEJ2 Series Electromagnetism Brake Three Phase Asynchronous Motors The electric motors are equipped the electromagnetic brake on the non-shaft end, when electricity off, retarding disc will automatically press in end-shield which produce friction brake torque and stop the running of motor, the no-load brake duration is changed with the frame size of the motor, the range is 0.15-0.45 seconds. This kind of motor is considered as the driving force of various machinery and widely used in mechanical workout machine tool, transport machinery, package, woodworking, food, chemical engineering, textile, construction, shop, roll door machinery. OPERATING CONDITIONS: Ambient temperature: -15senti degree≤ 0≤ 40 senti degree Altitude: Not exceeding 1000 meters Rated frequency: 50Hz / 60Hz Insulation class: Class B / F Duty / Rating: Continuous(S1) Voltage for brake: DC 99V for motors up to H100 DC170V for motors H112 and up
