4-pole motor IE2 series
asynchronousAC220 V

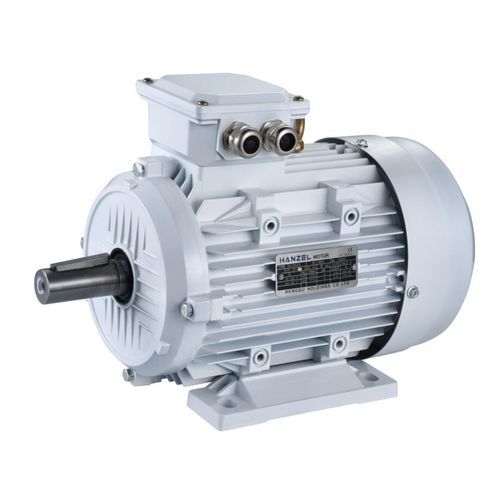

4-pole motor - IE2 series - Hengsu Holdings Co,.Ltd. - asynchronous / AC / 220 V
4-pole motor - IE2 series - Hengsu Holdings Co,.Ltd. - asynchronous / AC / 220 V
4-pole motor - IE2 series - Hengsu Holdings Co,.Ltd. - asynchronous / AC / 220 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC
Voltage
220 V, 660 V
Configuration
cast iron frame, aluminum-frame
Protection class
IP55, IP44
Efficiency classes
IE2
Number of poles
4-pole
Cooling mechanism
self-ventilated
Applications
food
Other characteristics
high-torque, low-speed
Power

Max.: 315,000 W
(428.28 hp)

Min.: 750 W
(1.02 hp)

Intensity

Max.: 559 A

Min.: 1.5 A

Torque

Max.: 2,019 Nm
(1,489.137979 ft.lb)

Min.: 2.3 Nm
(1.696393 ft.lb)

Rotational speed

Max.: 1,785 rpm
(11,215.4858 rad.min-1)

Min.: 1,420 rpm
(8,922.1231 rad.min-1)

Description

IE2 4 poles electric motor has features of low speed and high torque. The voltage range is 200V-660V on request, and the frequency is 50 Hz and 60 Hz. The body is cast iron or aluminum and equipped with SKF bearings. IE2 4 Poles Electric Motors are widely used in places, where there doesn't exist combustible, explosive or corrosive gas, tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machinery, ect Protection class: IP44/IP55 Insulation class: B/F Cooling method: ICO141 OPERATING CONDITIONS: Ambient temperature: -15-40 Altitudine: Not exceed 1000m
