Asynchronous motor YE3 series
three-phaseIE34-pole

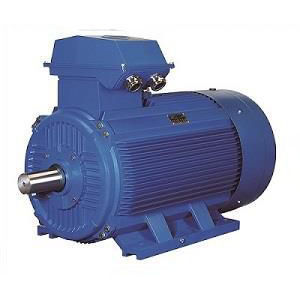

Asynchronous motor - YE3 series - Hengsu Holdings Co,.Ltd. - three-phase / IE3 / 4-pole
Asynchronous motor - YE3 series - Hengsu Holdings Co,.Ltd. - three-phase / IE3 / 4-pole
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Efficiency classes
IE3
Number of poles
4-pole
Applications
for pump, for machine tools, for the chemical industry, for compressors, for the mining industry, for fans
Other characteristics
high-efficiency, low-noise, energy-saving
Power

Min.: 750 W
(1.02 hp)

Max.: 315,000 W
(428.28 hp)

Intensity

Min.: 1.43 A

Max.: 554 A

Torque

Min.: 5.01 Nm
(3.695186 ft.lb)

Max.: 2,012 Nm
(1,483.975044 ft.lb)

Rotational speed

Min.: 1,430 rpm
(8,984.955 rad.min-1)

Max.: 1,790 rpm
(11,246.9017 rad.min-1)

Description

The YE3 series premium efficiency three-phase asynchronous motor is inline with IE3 efficiency standard in the provisions of IEC60034-30-2008.And the improvement of the efficiency in its design is in line with the state's requirements on the energy saving and consumption reducing of the manufacturing sector. YE3 series premium efficiency three-phase asynchronous motor with the mounting dimension in accordance with standard IEC60034,it has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class.YE3 series premium efficiency three-phase asynchronous motor can be widely used in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.
