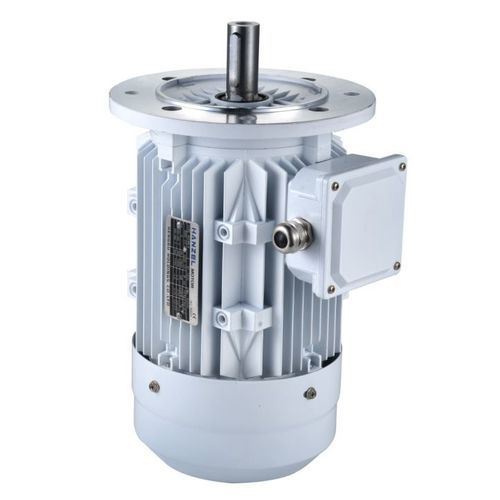

Asynchronous motor IE2 series
ACIE2IE3

Asynchronous motor - IE2 series - Hengsu Holdings Co,.Ltd. - AC / IE2 / IE3
Asynchronous motor - IE2 series - Hengsu Holdings Co,.Ltd. - AC / IE2 / IE3
Asynchronous motor - IE2 series - Hengsu Holdings Co,.Ltd. - AC / IE2 / IE3 - image - 2
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC
Efficiency classes
IE2, IE3
Applications
for pump, blower, packaging machine, for elevators, mill duty, centrifuge, for grinding machines, for crusher, for fans, for conveyors
Other characteristics
high-efficiency, high-torque, low-noise, low-vibration, energy-saving
Power

Min.: 750 W
(1.02 hp)

Max.: 315,000 W
(428.28 hp)

Intensity

Min.: 1.43 A

Max.: 554 A

Torque

Min.: 2.51 Nm
(1.851281 ft.lb)

Max.: 1,009 Nm
(744.200209 ft.lb)

Rotational speed

Min.: 2,865 rpm
(18,001.3259 rad.min-1)

Max.: 3,575 rpm
(22,462.3875 rad.min-1)

Description

IE2 High Efficiency Electric Motor have the advantage of long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable...High Efficiency Motor manufacturer / supplier in China, offering Energy Saving Asynchronous IE2 Electrical Motor, Energy Saving Induction IE2 Electrical Motor, Energy Saving AL Housing IE2 Electrical Motor and so on. IE2 High Efficiency Electric Motor complying with IE3 efficiency levels according to IEC60034-30 and GB 18613-2012 2 levels, power from 0.75 to 315 kW, can be customized according to customer requirements. Typical Applications: Pumps, Fans, Crushers, Conveyor belts, Mills, Centrifugal machines, Presses, Elevators,Packaging equipment,Grinders and others
