Low-voltage motor IE2 series
asynchronousthree-phase220 V

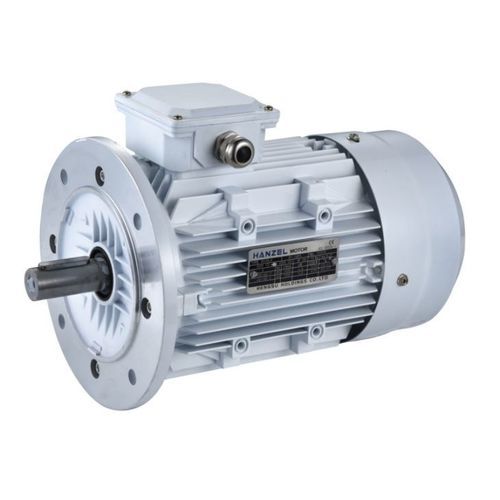

Low-voltage motor - IE2 series - Hengsu Holdings Co,.Ltd. - asynchronous / three-phase / 220 V
Low-voltage motor - IE2 series - Hengsu Holdings Co,.Ltd. - asynchronous / three-phase / 220 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
220 V, 660 V
Configuration
aluminium, cast iron, squirrel cage, TEFC
Protection class
IP54
Efficiency classes
IE2
Number of poles
4-pole, 6-pole, 8-pole, 2-pole
Other characteristics
low-voltage, high-efficiency
Power

Max.: 315,000 W
(428.28 hp)

Min.: 550 W
(0.75 hp)

Intensity

Max.: 559 A

Min.: 1.5 A

Torque

Max.: 2,019 Nm
(1,489.137979 ft.lb)

Min.: 5.03 Nm
(3.709938 ft.lb)

Rotational speed

Max.: 1,785 rpm
(11,215.4858 rad.min-1)

Min.: 1,420 rpm
(8,922.1231 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

IE2 Low Voltage Electric Motor aluminum body SKF bearing quality guaranteed electric motor IE2 Low Voltage Electric Motor has features of low speed and high torque. The voltage range is 200V-660V on request, and the frequency is 50 Hz and 60 Hz. IE2 Low Voltage Electric Motor has features of low speed and high torque. The voltage range is 200V-660V on request, and the frequency is 50 Hz and 60 Hz. The body is cast iron or aluminum and equipped with SKF bearings. Three-phase, multivoltage, IP54, TEFC High efficiency - complying with IE2 efficiency levels according to IEC60034-30 Frames: 80 up to 355 Mounting: B3 Class "F" insulation (ΔT = 80K) Continuous duty: S1 Squirrel cage rotor / Aluminium die cast Color: RAL 5010 - Blue
