Asynchronous motor
three-phase400 V380 V

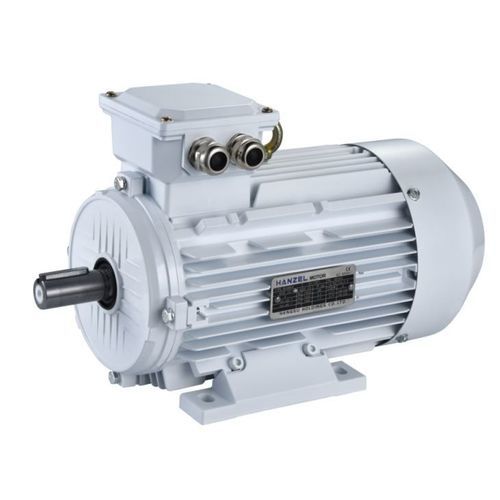

Asynchronous motor - Hengsu Holdings Co,.Ltd. - three-phase / 400 V / 380 V
Asynchronous motor - Hengsu Holdings Co,.Ltd. - three-phase / 400 V / 380 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
400 V, 380 V, 220 V
Configuration
cast iron, TEFC
Protection class
IP55
Number of poles
4-pole, 6-pole, 8-pole, 2-pole
Applications
for pump, blower, for machine tools, for compressors, for fans
Other characteristics
multi-speed
Power

Min.: 180 W
(0.24 hp)

Max.: 315,000 W
(428.28 hp)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

Asynchronous electric motor can be widely used in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on. Asynchronous electric motors are in cast iron execution, totally enclosed fan cooled (TEFC). Asynchronous electric motors are available in frame size H 80-355 in 2-4-6 and 8 poles, various combinations of two- and multi speed in frame size H80-280, unwounded size H80-132 in 2-4-6 and 8 poles, including spare parts. The terminal box is standard top mounted. Grease lip: H180-315 motor with grease lip for regrease. Performance:CL. F, IP55. IMB3, B5, B35,B14. Option: Motor can add PTC to well protect the motor on request. OPERATING CONDITIONS: Ambient temperature: -15senti degree≤ 0≤ 40senti degree Altitude: Not exceeding 1000 meters
