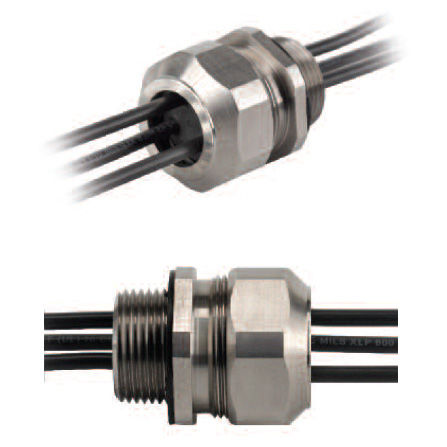

Stainless steel cable gland Masthead®

aluminiumIP68strain relief

Heyco®-Tite Solar Masthead® Metal Liquid Tight Cordgrips Multi-Hole, NPT Hubs - IP 68 Rated The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Break-Thru Skinned-Over glands offer flexibility to use from 1 to 31 of the available holes while still providing a liquid tight seal around the wire. - Rolled grease-free threads prevent galling and allow for multiple assemblies and disassemblies. - Approved for NEMA 4, 4X, 6 and 6P applications. - Self-retaining sealing washers eliminate the need for an O-Ring groove, thus reducing cost. - Stainless Steel ideal for corrosive environments. - Aluminum a less costly solution for robust environments. - Suitable for use with USE-2 and PV Cable. - Secure input PV leads from solar panel array strings to fuse holder hookup within solar combiner boxes. - No disassembly required for installation. - Sealing washer required for through hole applications only. - DFARS Compliant. QuickSpecs Material SSMCG: 303 Stainless Body and sealing nut with Nylon 6/6 finger and TPE Gland Certifications Certified by UL for Compliance with both Canadian and US requirements under File E51579 Recognized under the Component Program of Underwriters' Laboratories File E51579 to both Canadian and US requirements Flammability Rating 94V-2
