Cylindrical cap LTPVCC

TPVfor electrical connectorspush-in

Product Overview

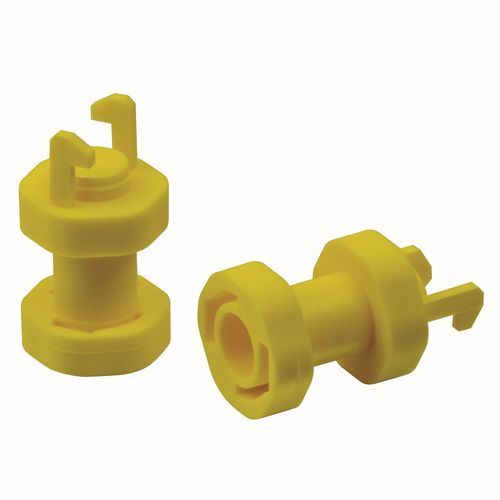

Heyco® Liquid-tight PV Connector Cap protects the exposed end of unsecured 4 mm PV connectors until final installation, preventing ingress of liquids, insects and dust. The cap installs with a simple push-in, quarter-turn retention.

Features

• All-in-one protection for exposed, unsecured 4 mm PV connector ends.
• Push-in with quarter-turn retention secures the cap to male or female connector ends.
• Prevents ingress of liquids, insects and dust particulates during storage and installation.
• Provides at least IPX4 protection on 4 mm PV connectors; achieves IP67 with popular Staubli MC4 connector.

QuickSpecs
Material: Heat-stable, UV-rated Nylon 6/6 — Color: Yellow (also available White)
Temperature range: -40°F (-40°C) to 221°F (105°C)

Part numbers and part dimensions
Table header: PART NO. | DESCRIPTION | A (in / mm) | B (in / mm) | C (in / mm)
S6254 | LTPVCC YELLOW 100/BAG | A = 0.85 in / 21.6 mm | B = 0.80 in / 20.3 mm | C = 1.43 in / 36.3 mm
S6255 | LTPVCC YELLOW BULK | A = 0.85 in / 21.6 mm | B = 0.80 in / 20.3 mm | C = 1.43 in / 36.3 mm
S6256 | LTPVCC WHITE 100/BAG | A = 0.85 in / 21.6 mm | B = 0.80 in / 20.3 mm | C = 1.43 in / 36.3 mm
S6257 | LTPVCC WHITE BULK | A = 0.85 in / 21.6 mm | B = 0.80 in / 20.3 mm | C = 1.43 in / 36.3 mm

Illustrations
Product images and installed views available showing the cap and installed condition.

Technical specifications

• Material: Heat-stable, UV-rated Nylon 6/6
• Color: Yellow (also available White)
• Temperature range: -40°F (-40°C) to 221°F (105°C)
• Environmental protection: Minimum IPX4 on 4 mm PV connectors; IP67 achieved with Staubli MC4 connector
• Part numbers: S6254, S6255, S6256, S6257
• Part dimensions (typical): A = 0.85 in (21.6 mm); B = 0.80 in (20.3 mm); C = 1.43 in (36.3 mm)
