Diesel generator set HDW-200 T6
three-phasestationary60 Hz

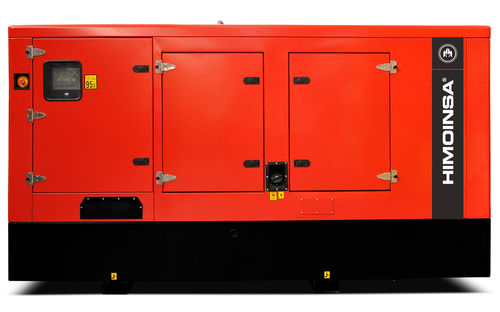

Diesel generator set - HDW-200 T6 - HIMOINSA - three-phase / stationary / 60 Hz
Diesel generator set - HDW-200 T6 - HIMOINSA - three-phase / stationary / 60 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
60 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial
Options and accessories
soundproof
Power in kVA

Min.: 231 kVA
(314.07 hp)

Max.: 251 kVA
(341.26 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 1,800 rpm
(11,310 rad.min-1)

Description

DOOSAN Model P086TI engine, diesel, water-cooled, four strokes-cycle with direct injection type has an output of 197kW prp and on standby it is 215kW. The bore/stroke is 111 x 139mm with an 8,071L displacement and a compression ratio of 18,5. On standby the fuel consumed is 56,8l/h and at 100% PRP, fuel consumed is 50,6l/h whereas at 50% PRP, consumption is 25,1l/h. It has an electrical governor, dry air filter and the exhaust pipe’s inner diameter is 75mm. The electrical system is 24V. The radiator has a blowing fan and radiator guards from the hot areas. It has a water separator decanter filter, but it is not visible. The total capacity for oil is 15,5L and it has a 6L cylinder arrangement with turbocharged and after-cooled aspiration.
