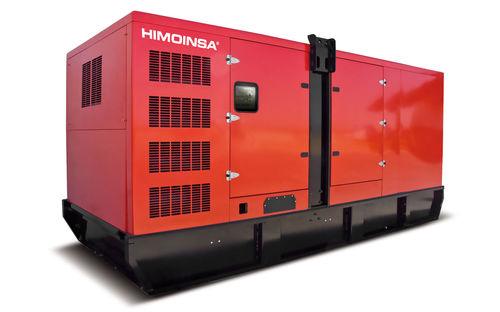

Diesel generator set HDW-700 T5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
750 kVA
(1,019.72 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Rated Output: 636 kW standby
Manufacturer: DOOSAN
Model: P222LE-II
Engine Type: Diesel 4 strokes-cycle
Injection Type: Direct
Aspiration Type: Turbocharged and aftercooled
Ciylinders Arrangement: 12 - V
Bore and Stroke: 128 x 142 mm
Displacement: 21,927 L
Cooling System: coolant
Lube Oil Specifications: API CH4 SAE 15W40 or 10W40
Compression Ratio: 14:1
Fuel Consumption 100% Standby: 162,6 l/h
Fuel Consumption 75 % Standby: 119,3 l/h
Fuel Consumption 50 % Standby: 79,5 l/h
Fuel Consumption 25 % Standby: 41,7 l/h
Total Oil Capacity: 40 L
Governor Type Electrical
Air Filter Type Dry
Inner diameter exhaust pipe: 81 mm
Diesel engine
4 strokes-cycle
Water-cooled
24V Electrical system
Radiator with blowing fan
water separator decanting filter (no visible level)
Electronic governor
Sender WT
Senders OP
Low water level sensor
Dry air cleaner
Hot components and radiator guards
Mobile components guards
