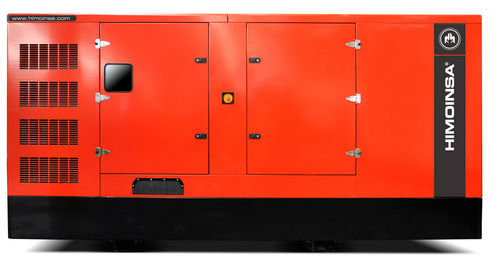

Diesel generator set HDW-405 T6 three-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
Max.: 506 kVA
(687.97 hp)Min.: 443 kVA
(602.31 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
DOOSAN Model HDW-405 T6 has a rated output of 378kW PRP and 434kW standby. It is a diesel type engine with a four-cycle and direct injection, turbocharged and aftercooled aspiration. The compression ratio is 15:1, with consumption ranging from 28l/h to 118.6l/h. Total oil capacity is 21L. The diameter of the inner exhaust pipe is 82,3mm.
It has a dry air filter and a 24V electrical system. Bore and stroke are 128 x 142mm, with the displacement of 14,618L. The lube oil is API CH4 SAE 15W40 or 10W40. It contains hot components, radiator and mobile components guard.
