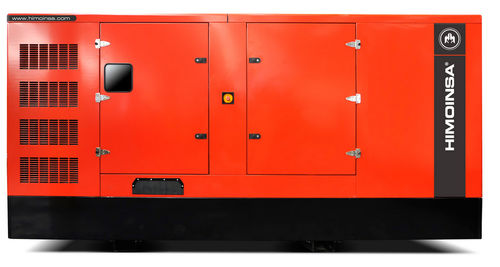

Diesel generator set HDW-485 T6 three-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
Max.: 606 kVA
(823.93 hp)Min.: 557 kVA
(757.31 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
DOOSAN engine model HDW-485 T6 has a rated output of 473kW PRP, with 516kW standby. The engine is a diesel, four-stroke cycle and has turbocharged and aftercooled aspiration. Bore and stroke are 128 x 142mm, with displacement of 18,273L. The compression ratio is 15:1 with consumption ranging from 34,9l/h up to 144,6l/h.
Total oil capacity is 35L. It has a dry air filter and the diameter of the inner exhaust pipe is 82,3mm. It has a 24V electrical system. Also, it contains a guard for all the radiators, hot components and mobile components.
