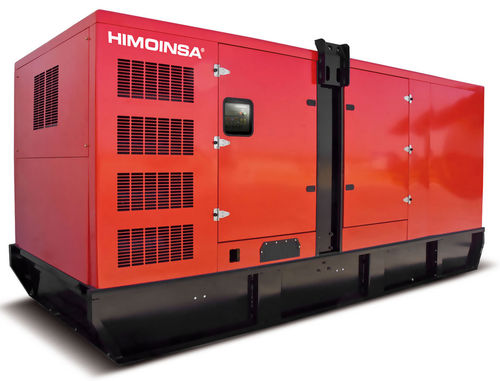

Diesel generator set HDW-655 T6 three-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
Max.: 815 kVA
(1,108.09 hp)Min.: 755 kVA
(1,026.51 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The DOOSAN model P222FE engine has a 635kW PRP, with 687kW standby. The engine is diesel, four stroke-cycle with direct injection and turbocharged and aftercooled aspiration.
Bore and stroke are 128 x 142mm with a displacement of 21,927L. The compression ratio is 14,2:1 with the consumption ranging from 46,4l/h up to 191,7l/h. Total oil capacity is 40L.
It has a dry air filter and a 24V electrical system. The diameter of the inner exhaust pipe is 81mm. It also contains guards for all hot components and radiators, and for all the mobile
components.
