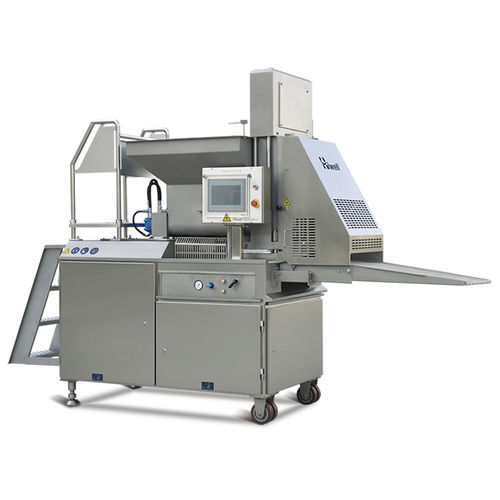

Patty meat forming machine AMF600-IV

patty meat forming machine
patty meat forming machine
Add to favorites
Compare this product


Finished product
patty, nuggets
Operational mode
Machine length

3,170 mm
(124.8 in)

Machine width

1,176 mm
(46.3 in)

Machine height

2,430 mm
(95.67 in)

Width of conveyor belt

600 mm
(23.62 in)

Motor power

15.12 kW
(20.56 hp)


1. It can be suitable for metal forming plates 2. The protective grade for the electric apparatus parts reach to IP67 3. The speed increases to 70 stokes /min 4. Weight error margin ≤1.5% 5. New user interface 6. To avoid the operation mistake ,with high safe guarantee Electric apparatus parts: Using original Germany SIEMENS PLC processor with touch screen operation, Chinese/English operating system and automatic failure alarm system. Safe device: Magnetic protection switch (safe cover). Hydraulic parts: Adopting the VICKERS, STAUFF, PARKER, INTERGRADTE HYDRAULIC original parts to guarantee the stable running of the whole machine. Pneumatically system: Adopting the completely Germany FESTO original system. Stainless steel made and portion non-metal material, safe and reliable, in conformity with the standard of HACCP, and got the CE authorization. Automatic Multi Forming machine AMF600-Ⅳ (automatic hambuger patty and nuggets forming machine) can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality. Easy and convenient replacement of food and the accurate portion control realize the cost control of the production. Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops.
