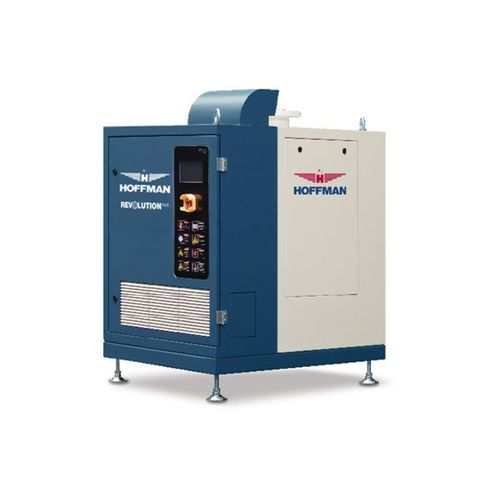

Air turbo-blower REVOLUTION PLUS

impellerfor blowersindustrial

Overview
Hoffman & Lamson's REVOLUTIONPLUS series of high-speed turbo blowers pairs an advanced blower management system with a reduced footprint compared with conventional blowers. Units are factory pre-wired and tested inside an acoustically designed enclosure for plug-and-play installation. Performance varies with flow/pressure combinations, site conditions and application requirements.

Design and Operation
REVOLUTIONPLUS 10-75 HP models feature a single impeller and air cooling. Motor options include aluminum-rotor induction, copper-rotor induction or permanent magnet synchronous motors, selected per performance needs. The compression stage includes a blow-off valve to protect the unit during start/stop cycles. An inverter regulates the high-speed motor RPM. Units are installed in sound-insulated cabinets and include a Programmable Logic Controller (PLC) for monitoring, control and speed adjustment. A Variable Speed Drive (VSD) is fitted as standard.

Features and Benefits

• Compact, high-speed motor design for increased operational velocity and output.
• Single impeller manufactured from Class III Anodized Aluminum for durability in industrial use.
• Patented multi-foil air bearing design and coating to extend bearing life and performance.
• Factory pre-wired and tested in a sound enclosure for simplified commissioning.
• Compression unit with blow-off valve for start/stop protection.
• PLC for active system monitoring and operational control.
• VSD (Variable Speed Drive) standard to match motor speed to process demand.

Performance & Operational Advantages

• High efficiency: energy savings up to 40% versus conventional solutions (per manufacturer data).
• Low noise level: enclosure designed to reduce sound to under 85 dBA.
• Simplified maintenance: no belts, no gears, no oil required.
• Extended bearing life through advanced air-foil bearing technology, reducing heat loss and improving motor efficiency.

Technical specifications

• Series: REVOLUTIONPLUS (High-Speed Turbo Blower)
• Power range: 10-75 HP
• Impeller: single impeller; material Class III Anodized Aluminum
• Cooling: air-cooled
• Motor options: aluminum rotor induction motor, copper rotor induction motor, or permanent magnet synchronous motor (selected per performance requirements)
• Control: Programmable Logic Controller (PLC) for monitoring and control
• Drive: Variable Speed Drive (VSD) standard; inverter controls blower motor speed
• Protection: compression unit with blow-off valve for start/stop protection
• Bearing technology: patented multi-foil air bearing design and coating
• Maintenance: no belts, no gears, no oil
• Noise rating: designed under 85 dBA
• Energy savings: up to 40% compared with conventional solutions (per manufacturer claim)
