Negative pressure blower package TurboPak™

positive pressure

Overview

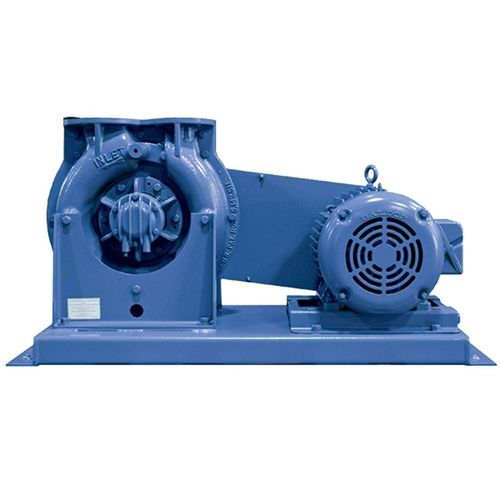

TurboPaks are pre-engineered packages that combine a TurboTron regenerative blower/exhauster and an electric motor mounted on a heavy-duty platform for simplified installation and operation. Hoffman & Lamson offers TurboPak A/B and TurboPak D configurations to address differing flow, pressure and turndown requirements.

TurboPak A/B
TurboPak A/B provides a cost-effective, proven solution for delivering a constant air flow across varying pressures. The A and B models differ only by internal frame size to match application and performance needs.

TurboPak D
TurboPak D is engineered to extend turndown capability at low overall cost, making it suitable where air demand varies significantly, such as post-aeration stages in wastewater treatment plants.

Technical Data

• Half Flow Series
  • Inlet Flow: up to 450 CFM (760 m3/h)
  • Vacuum Range: up to 14.0 inHg (470 mbar)
  • Discharge Pressure: up to 14 psig (0.9 bar g)
• Full Flow Series
  • Inlet Flow: up to 900 CFM (1,500 m3/h)
  • Vacuum Range: up to 14.0 inHg (470 mbar)
  • Discharge Pressure: up to 14 psig (0.9 bar g)

Features / Technical specifications

• Models: TurboPak A/B — internal frame size difference to suit application requirements
• Model: TurboPak D — improved turndown capability for variable air demand (suitable for post-aeration in wastewater treatment)
• Half Flow Series — Inlet Flow up to 450 CFM (760 m3/h); Vacuum Range up to 14.0 inHg (470 mbar); Discharge Pressure up to 14 psig (0.9 bar g)
• Full Flow Series — Inlet Flow up to 900 CFM (1,500 m3/h); Vacuum Range up to 14.0 inHg (470 mbar); Discharge Pressure up to 14 psig (0.9 bar g)
