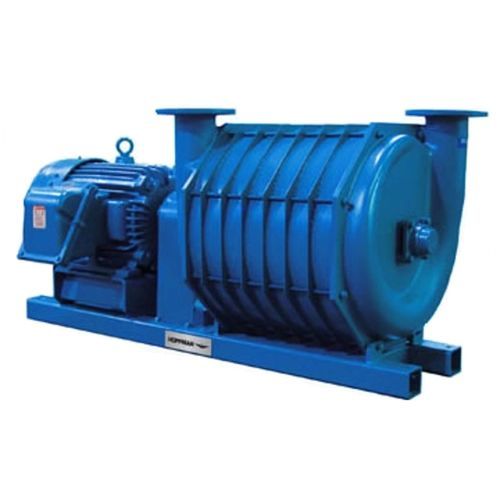

Centrifugal vacuum pump T

oil-freemulti-stagemotor

Overview
These fabricated multistage centrifugal exhausters feature cast aluminum heads to improve efficiency, durability and operational stability. The four-bearing rotor arrangement reduces load on the inner bearings and extends bearing life. The four-bearing design also permits use of a short-shaft motor that is commonly stocked, enabling motor replacement without removing the rotating assembly.

Technical Data

• Inlet flow: up to 800 CFM (up to 1,350 m3/h)
• Vacuum range: up to 10.5 inHg (up to 350 mbar)

Construction and maintenance

• Construction: Multistage centrifugal exhauster
• Heads: Cast aluminum heads for improved efficiency, durability and stability
• Bearing design: Four-bearing arrangement to reduce load on inner bearings and extend bearing life
• Motor compatibility: Four-bearing arrangement permits use of short-shaft motors for easier replacement without removing the rotating assembly
• Maximum inlet flow: up to 800 CFM (up to 1,350 m3/h)
• Maximum vacuum range: up to 10.5 inHg (up to 350 mbar)
