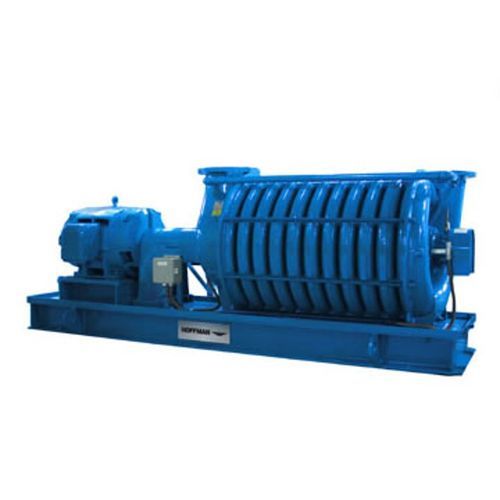

Air blower Hoffman 742centrifugalmulti-stagefor water
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- multi-stage
- Applications
- for ventilation, for wastewater treatment, for water
- Flow
Min.: 2,100 m³/h
(74,160.8 ft³/h)Max.: 9,100 m³/h
(321,363.467 ft³/h)- Operating pressure
Min.: -61,000 Pa
(-8.847 psi)Max.: 150,000 Pa
(21.756 psi)
Description
Overview
The Hoffman 742 is a medium-inlet multistage centrifugal blower designed for water, wastewater and industrial air handling applications. It provides a stable operating range for both discharge pressure and vacuum service.
Technical Data
Inlet flow: 1,250 to 5,400 CFM (2,100 to 9,100 m3/h)
Discharge pressure: 0.75 to 22 psig (0.05 to 1.5 bar g)
Vacuum range: 1 to 18 inHg (35 to 610 mbar)
Features / Specifications
The Hoffman 742 is a medium-inlet multistage centrifugal blower designed for water, wastewater and industrial air handling applications. It provides a stable operating range for both discharge pressure and vacuum service.
- Medium flow multistage centrifugal blower
- Typical applications: water treatment, wastewater aeration, industrial air handling
- Inlet flow range: 1,250 to 5,400 CFM (2,100 to 9,100 m3/h)
Technical Data
Inlet flow: 1,250 to 5,400 CFM (2,100 to 9,100 m3/h)
Discharge pressure: 0.75 to 22 psig (0.05 to 1.5 bar g)
Vacuum range: 1 to 18 inHg (35 to 610 mbar)
Features / Specifications
- Model: Hoffman 742
- Brand: Hoffman
- Inlet flow: 1,250 to 5,400 CFM (2,100 to 9,100 m3/h)
- Discharge pressure: 0.75 to 22 psig (0.05 to 1.5 bar g)
- Vacuum range: 1 to 18 inHg (35 to 610 mbar)
- Applications: water treatment, wastewater aeration, general industrial air handling
