Air blower TurboTron™

impellermulti-stagefor vacuum

Overview

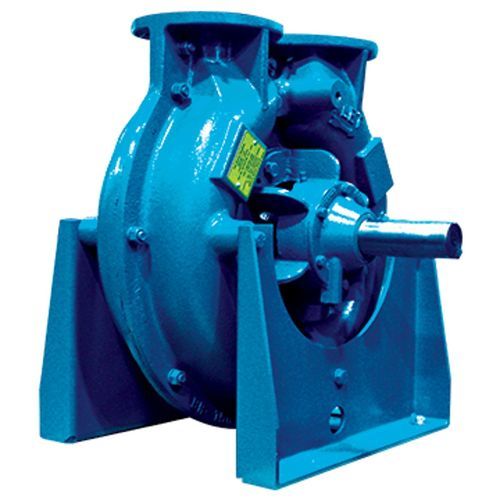

The TurboTron™ regenerative blower/exhauster is a single-impeller unit that achieves multistage compression with one rotating element. Engineered for continuous industrial duty, it is suitable for blower or vacuum applications that require pulse-free flow and reliable performance.

Full Flow and Half Flow
Available in Full Flow and Half Flow series, TurboTron™ units are offered as belt-driven or direct-driven configurations and can be supplied within pre-engineered TurboPak systems for simplified installation.

Trouble-Free Operation
Design features minimize maintenance: one moving part, no timing gears, non-contacting shaft seals and bearings that require only occasional greasing. The aluminum housing provides corrosion resistance and a non-binding Teflon seal is used in close tolerance areas to maintain reliability.

Quiet and Pulse-Free Performance
TurboTron™ delivers continuous, pulse-free airflow and clean vacuum while operating quietly (82 dBA at 3 ft, up to 14 inHg). It is designed for applications where low noise and consistent flow are critical.

Technical Data

• Half Flow Series
  • Inlet Flow: to 450 CFM (to 760 m3/h)
  • Vacuum Range: to 14.0 inHg (to 470 mbar)
  • Discharge Pressure: to 14 psig (0.9 bar g)
• Full Flow Series
  • Inlet Flow: to 900 CFM (to 1,500 m3/h)
  • Vacuum Range: to 14.0 inHg (to 470 mbar)
  • Discharge Pressure: to 14 psig (0.9 bar g)

Specifications

• Model: TurboTron™
• Configurations: belt driven and direct driven; available in pre-engineered TurboPak systems
• Impeller: single-impeller design achieving multistage compression
• Maintenance: one moving part, no timing gears; bearings require only occasional greasing; shaft seals non-contacting and non-wearing
• Housing: high tensile strength aluminum, corrosion resistant
• Seals: non-binding Teflon seal in close tolerance areas
• Noise: 82 dBA at 3 feet (up to 14 inHg)
• Half Flow Inlet Flow: up to 450 CFM (760 m3/h)
• Full Flow Inlet Flow: up to 900 CFM (1,500 m3/h)
• Vacuum Range: up to 14.0 inHg (470 mbar)
• Discharge Pressure: up to 14 psig (0.9 bar g)
