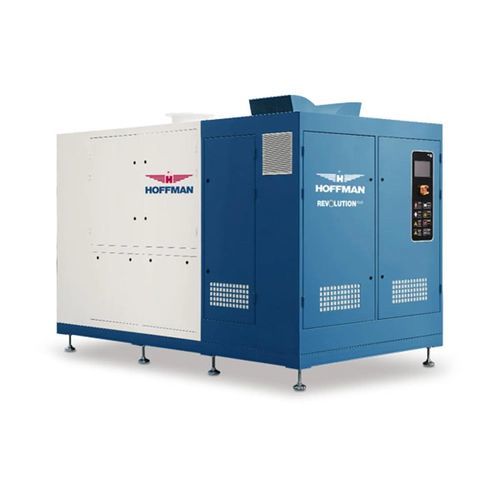

Air turbo-blower REVOLUTION PLUS

centrifugalimpellersingle-stage

Overview
HOFFMAN's REVOLUTIONPLUS high‑speed turbo blowers deliver compact, energy‑efficient single‑stage centrifugal compression for industrial processes. Units are factory pre‑wired and tested inside a sound‑insulated enclosure for straightforward plug‑and‑play deployment. The series combines a high‑speed PMSM motor with Class III anodized aluminum impellers and a patented multi‑foil air bearing with Teflon coating to extend service life and reduce maintenance needs.

Design and Operation
The compression airend incorporates a blow‑off valve to protect the air end during start/stop cycles. Motor speed is regulated by a Variable Speed Drive (VSD). A built‑in PLC provides monitoring, control and speed adjustment to match process demand. Actual performance depends on flow/pressure combinations, site conditions and specific applications.

Key Features and Benefits

• Dual impeller / twin motor arrangement for 400–700 HP models.
• Water‑jacket motor cooling for units in the 400–700 HP range.
• High‑performance Permanent Magnet Synchronous Motor (PMSM) for improved efficiency.
• Variable Speed Drive (VSD) standard to adapt blower speed to process/oxygen demand.
• Patented multi‑foil air bearing with Teflon coating for improved damping and stability (~30% better vs single‑foil designs).
• Impellers manufactured from Class III anodized aluminum.
• No belts, gears or oil required — simplified maintenance.
• Compact footprint with sound‑insulated enclosure and leveling feet; no special foundations required.
• Factory pre‑wired and tested for plug‑and‑play installation.
• Access panels and gasketed air‑end/electronics enclosures for protection against dirt and debris.
• Low‑noise design; sound level rating <85 dBA.
• Energy savings up to 40% and reduced carbon footprint compared with conventional solutions.
• Controller‑independent operation possible up to 100 ft (installation‑dependent).

Applications
Packaged and optimized for wastewater treatment and general industrial applications requiring efficient single‑stage centrifugal blower performance and advanced energy management.

Technical specifications

• Series name: REVOLUTIONPLUS
• Power range (this product page): 400–700 HP
• Airend: single‑stage centrifugal with blow‑off valve
• Impeller material: Class III anodized aluminum
• Motor type: Permanent Magnet Synchronous Motor (PMSM)
• Motor cooling: water‑jacket cooled (models in 400–700 HP range)
• Drive: Variable Speed Drive (VSD) standard
• Bearing technology: patented multi‑foil air bearings with Teflon coating
• Maintenance: no belts, gears or oil required
• Controls: integrated PLC and advanced blower management system
• Sound enclosure: ergonomically designed sound‑insulated enclosure; design goal <85 dBA
• Mounting/installation: compact footprint, leveling feet, no special foundation required
• Protection features: access panels, gasketed air‑end and electronics protection
• Operational notes: performance window varies with flow/pressure and site/application conditions
• Factory configuration: pre‑wired and tested for plug‑and‑play operation
• Estimated motor life: up to 4× greater than standard motors (manufacturer claim)
