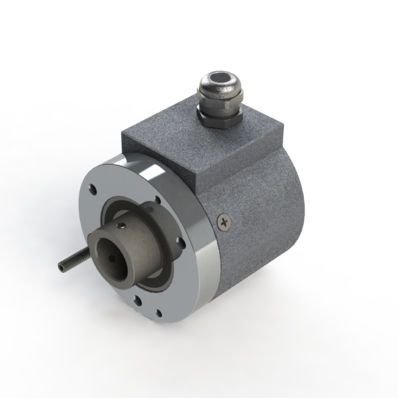

Incremental rotary encoder SWI 58 seriesmechanicalflange15VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- mechanical
- Construction
- flange
- Supply voltage
- 15VDC, 24 Vdc, 12 Vdc
- Material
- aluminum, stainless steel
- Protection level
- IP67
- Other characteristics
- compact
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Max.: 15 mm
(0.59 in)Min.: 6 mm
(0.24 in)- Output frequency
100 kHz
- Process temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description
Mechanical specifications
Flange: Aluminium
Housing: Zinc die-casting
Shaft: stainless steel
Bearing: Deep groove ball bearing
Weight: approx 0,4 kg
Protection type: IP 54
Max. speed: 6.000 U/min
Torque: approx 5 Ncm
Max. shaft load: axial 100 N/radial 100 NElectrical specifications
max. pulse frequency: 100 kHz
Perm. temperature range: -30°. . . +70° C
Power supply: 10 V . . . 30 V DC
Max. current consumption: 80 mA (without load)
Max. output load: 30 mA (per channel)
Residual ripple: max. ± 5% UB
Power supply: 5 V DC ± 5%
Max. current consumption: 80 mA
(150 mA for Line Driver 75114
or similar) Incremental rotary-encoder with a blind hollow shaft dia-
meter of 6-15 mm
E Housing diameter 58mm, compact design
and high degree of protection up to IP67
E Maximum 5.000 pulses / revolution
E Compact design for highest mechanical requirements
E Direct assembly onto existing shafts
