- Incremental rotary encoder
- Hohner Elektrotechnik GmbH

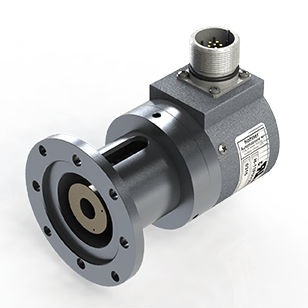

Incremental rotary encoder HC mechanicalsolid-shaft9VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- mechanical
- Construction
- solid-shaft
- Supply voltage
- 5VDC, 24VDC, 12VDC, 15VDC, 8VDC, 9VDC, 6VDC
- Material
- aluminum, stainless steel
- Protection level
- IP65
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 12 mm
(0.47 in)- Rotational speed
Min.: 3,000 rpm
(18,850 rad.min-1)Max.: 6,000 rpm
(37,699 rad.min-1)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Incremental rotary-encoder
Solid shaft diameter and fastening coupling
Housing diameter , compact design and high degree of protection
Maximum pulses / revolution
For highest industrial requirements
Catalogs
Series HC
3 Pages
