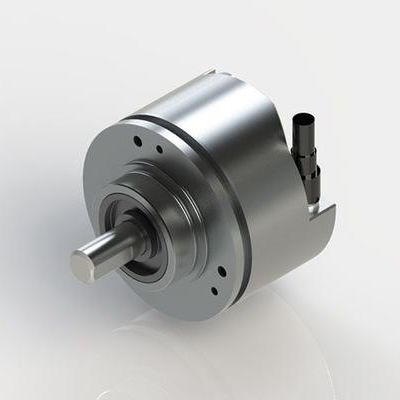

Incremental rotary encoder PR90 series

opticalmechanicalUSB

Programmable incremental optical encoder from 1 to 65.536 pulses per rotation Programmable via USB, without an additional programming box Programmable without powering up the encoder Automatic power voltage recognition 0° to 360° reference signal position Protection class IP65 according to DIN EN 60529 Connection by cable (other cable length available) or industrial connector M12 or M23 MECHANICAL SPECIFICATIONS Materials Cover: Aluminium Housing: Aluminium Shaft: Stainless Steel Bearings Ballraces Bearings lifetime 1x10¹⁰ rev. Maximum number of revolutions permitted mechanically 6000 rpm Protection against dust and splashes according to DIN EN 60529 IP65 Rotor inertia moment 30 gcm² Starting torque at 20°C (68°F) ≤ 0,01 Nm Maximum load permitted on axial shaft 40 N Maximum load permitted on radial shaft 80 N Weight aprox. 0,5 Kg Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz...2000Hz) Shock according to DIN EN 60068-2-27 1000 m/s² (6ms) Maximum pulses per turn 65.536 Connection 2 meters cable or industrial connector M12 or M23 (other cable lengths available on order) Female connector not included
