- Detection - Measurement
- Position, Speed and Acceleration Measurements
- Incremental rotary encoder
- Hohner Elektrotechnik GmbH

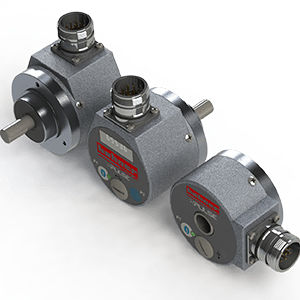

Incremental rotary encoder PMSmechanicalsolid-shaftUSB
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- mechanical
- Construction
- solid-shaft
- Output signal
- USB
- Material
- aluminum
- Protection level
- IP65
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 12 mm
(0.47 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
300 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Incremental rotary-encoder, programmable
Solid shaft diameter
Housing diameter compact design and high degree of protection
Maximum 65.536 pulses / revolution programmable
For highest industrial requirements
Programming via Micro USB, Bluetooth or two buttons
Catalogs
Serie PMS XPULSE
6 Pages
