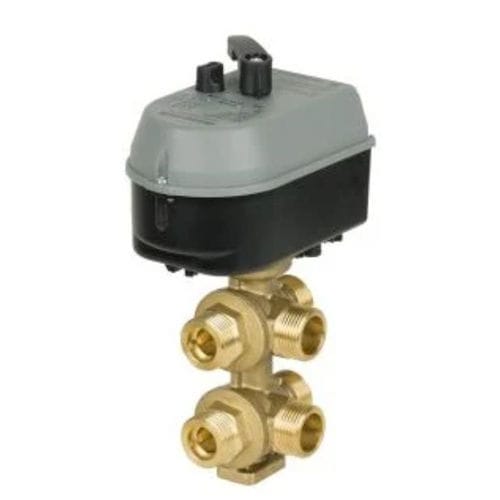

Ball valve VBG6 series electrically-actuatedadjustmentflow control
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- adjustment, flow control, changeover
- Media
- for water, for oxygen
- Body
- threaded
- Applications
- for pipes, coil
- Material
- brass
- Number of channels
- 6-way
- Associated function
- balancing
- Other characteristics
- modulating
- DN
15 mm, 20 mm
(0.591 in, 0.787 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 2 °C
(36 °F)Max.: 110 °C
(230 °F)
Description
External Threads by Honeywell are designed as change-over valve to connect one 2-pipe heat exchanger (Fan-coil Unit or Ceiling) to the 4-pipe system, ideally together with the Kombi-FCU Pressure Independent Control Valve used for dynamic balancing.
VBG6 valves are designed as a change-over valve to connect a single 2-pipe heat exchanger, a fan-coil unit or radiant ceiling, to a 4-pipe hydronic system. The valve can be used with modulating control to perform flow control, but best performance is obtained when used together with a pressure independent control valve on the heat exchanger piping.
Externally threaded valve for easy piping. Use with either 2-P on/off or 2..10Vdc modulating actuator. Pre-wired actuator with clear position indication and manual operation.
